1KAB20E

SKU: 7776

Manufacturer: Vishay

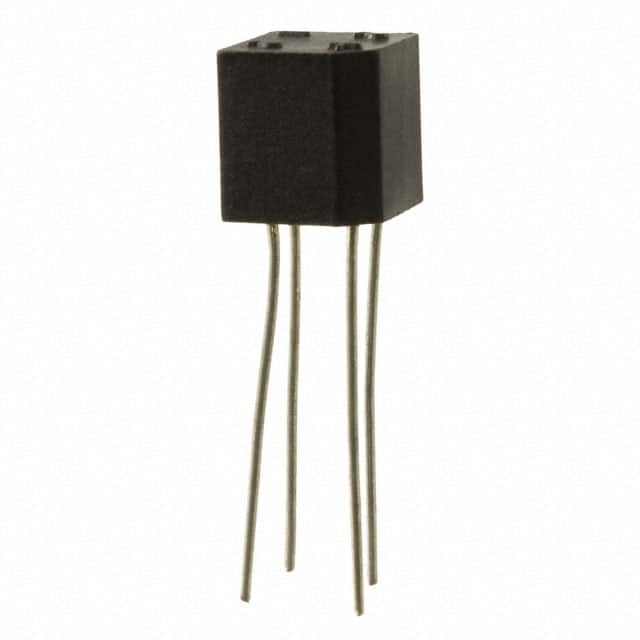

Rectifier Bridge Diode Single 200V 1.2A 4-Pin Case D-38

2650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Bridge Type	Single Phase
Configuration	Single
Peak Reverse Repetitive Voltage (V)	200
Peak Average Forward Current (A)	1.2
Peak RMS Reverse Voltage (V)	80
Peak Non-Repetitive Forward Surge Current (A)	52
Peak Forward Voltage (V)	1.1@1.88A
Peak Reverse Current (uA)	10(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	150
Original Package	Case D-38
Pin Count	4
Standard Package Method	Case D-38
Terminal Form	Through Hole
Package Height	10
Package Length	9.5
Package Width	9.5
PCB changed	4
