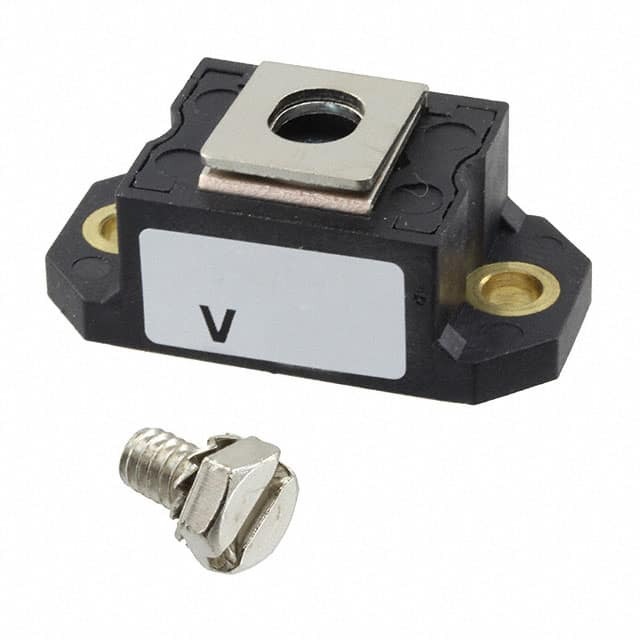

123NQ100PBF

SKU: 65131

Manufacturer: Vishay

Rectifier Diode Schottky 100V 120A 2-Pin Case D-67

2330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Schottky Diode
Maximum DC Reverse Voltage (V)	100
Configuration	Single
Peak Reverse Repetitive Voltage (V)	100
Maximum Continuous Forward Current (A)	120
Peak Non-Repetitive Surge Current (A)	12800
Peak Forward Voltage (V)	1.26@240A
Peak Reverse Current (uA)	3000
Operating Temperature-Min	-55
Operating Temperature-Max	175
Original Package	Case D-67
Pin Count	2
Standard Package Method	Module
Terminal Form	Screw
Package Length	40(Max)
Package Width	21(Max)
