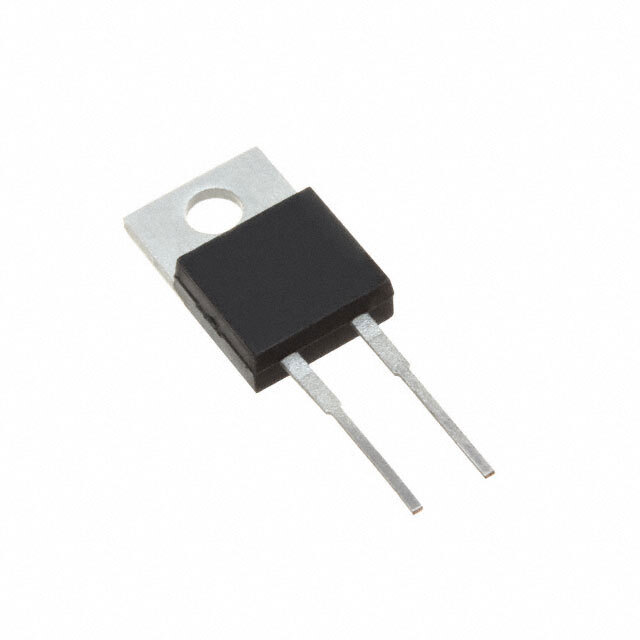

10ETS12PBF

SKU: 7500

Manufacturer: Vishay

Rectifier Diode Switching 1.2KV 10A 2-Pin(2+Tab) TO-220AC Tube

2270 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Switching Diode
Maximum DC Reverse Voltage (V)	1200
Configuration	Single
Peak Reverse Repetitive Voltage (V)	1200
Maximum Continuous Forward Current (A)	10
Peak Non-Repetitive Surge Current (A)	160
Peak Forward Voltage (V)	1.1
Peak Reverse Current (uA)	50
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-220AC
Pin Count	2
Terminal Form	Through Hole
Package Height	9.02(Max)
Package Length	10.51(Max)
Package Width	4.65(Max)
PCB changed	2
