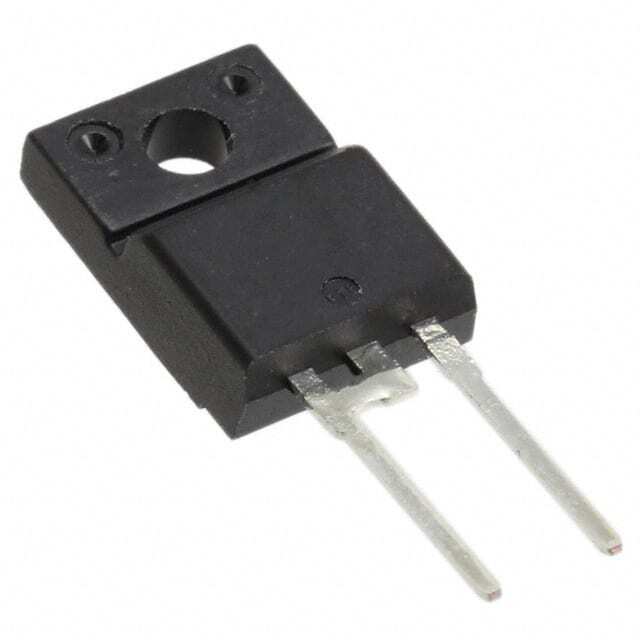

10ETF12FPPBF

SKU: 9095

Manufacturer: Vishay

Rectifier Diode Switching 1.2KV 10A 310ns 2-Pin(2+Tab) TO-220 Full-Pak Tube

590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Switching Diode
Configuration	Single
Peak Reverse Repetitive Voltage (V)	1200
Maximum Continuous Forward Current (A)	10
Peak Non-Repetitive Surge Current (A)	115
Peak Forward Voltage (V)	1.33
Peak Reverse Current (uA)	100
Peak Reverse Recovery Time (ns)	310
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-220 Full-Pak
Pin Count	2
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	16(Max)
Package Length	10.6(Max)
Package Width	4.8(Max)
PCB changed	2
Tab	Tab
