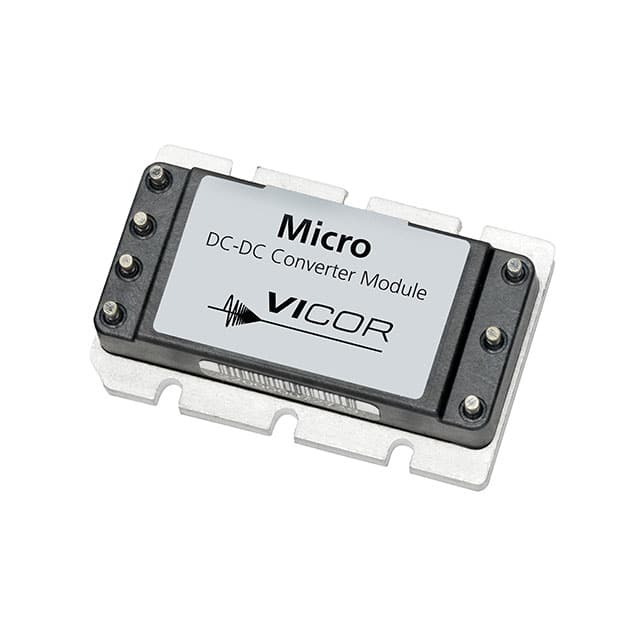

V24C3V3H75BL Vicor

V24C3V3H75BL

SKU: 123189

Manufacturer: Vicor

Module DC-DC 24VIN 1-OUT 3.3V 22.72A 75W Medical 7-Pin Quarter-Brick

Download sample

Request Free Samples

1550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Step Down
Number of Outputs	1
Isolation	Isolated
Minimum Input Voltage (V)	18
Typical Input Voltage (V)	24
Maximum Input Voltage (V)	36
Output Voltage (V)	3.3
Output Current (A)	22.72
Output Power (W)	75
Minimum Isolation Voltage	3000Vrms
Input/Output Type	DC/DC
Typical Standby Current (mA)	4(Max)
Switching Regulator	No
Load Regulation	0.4%
Line Regulation	0.2%
Efficiency (%)	81.6(Typ)
On/Off Logic	Positive
Operating Temperature-Min	-40
Operating Temperature-Max	100
Product Weight (g)	71.7
Output Type	Fixed
Original Package	Quarter-Brick
Pin Count	7
Standard Package Method	Brick
Terminal Form	Through Hole
Package Height	12.7
Package Length	57.9
Package Width	36.8
PCB changed	7
