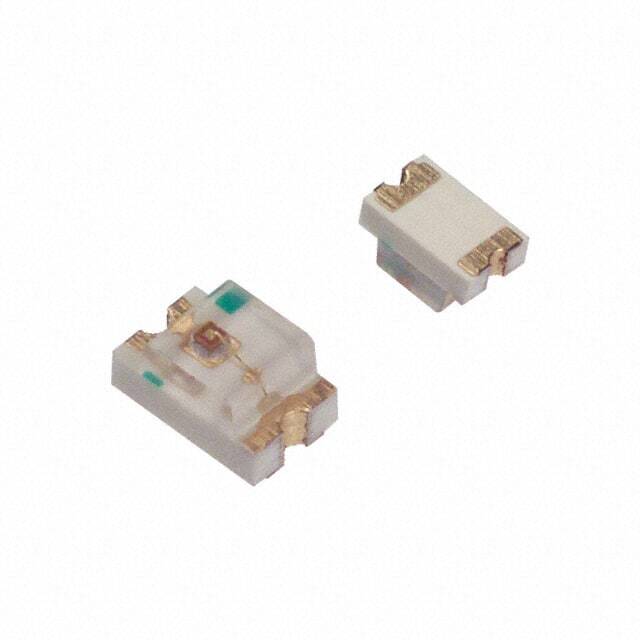

CMD17-21UGC/TR8

SKU: 145694

Manufacturer: VCC (Visual Communications Company)

LED Uni-Color Green 570nm 2-Pin Chip 0805(2012Metric) T/R

4400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Uni-Color
Product Category	Chip LED
Color	Green
Number of LEDs	1
Lens Shape Type	Rectangular
Lens Dimensions (mm)	1.4x1.25x0.5
Lens Appearance	Non Diffused
Mounting Orientation	Top Mount
Intensity	15mcd
Peak Wavelength (nm)	570
Viewing Angle (°)	140
Maximum Forward Current (mA)	30
Test Current (mA)	20
Maximum Forward Voltage (V)	2.8
Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	105
Operating Temperature-Min	-40
Operating Temperature-Max	85
Lead Standoff	No
Supplier Color	Green
High Power	No
High Brightness	Yes
Packing Method	Tape and Reel
Original Package	Case 0805(2012Metric)
Pin Count	2
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2
Package Width	1.25
