7012X1

SKU: 135994

Manufacturer: VCC (Visual Communications Company)

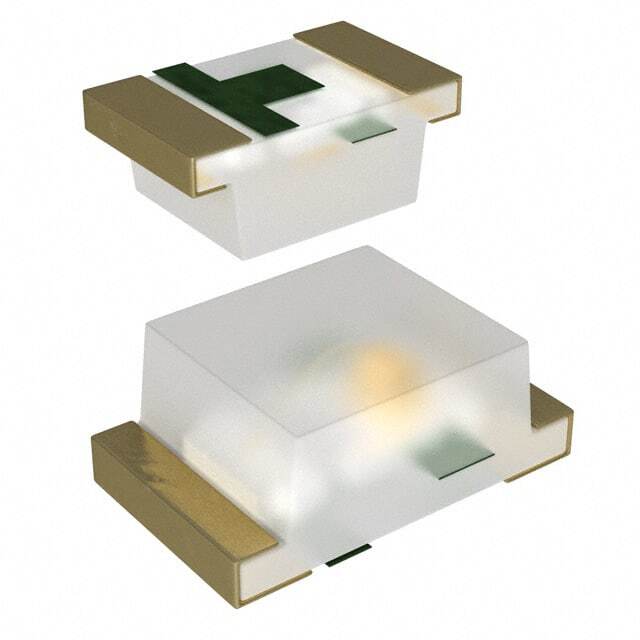

LED Low-Power Uni-Color Red 660nm 1.7V 2-Pin Chip 0805(2012Metric) T/R

1770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Uni-Color
Product Category	Chip LED
Color
Number of LEDs	1
Lens Shape Type	Rectangular
Lens Appearance	Diffused
Mounting Orientation	Top Mount
Intensity	11.77mcd
Peak Wavelength (nm)	660
Test Current (mA)	20
Maximum Forward Voltage (V)	2
Reverse Voltage (V)	4
Typical Forward Voltage (V)	1.7
Internal Protection	No
Maximum Power Dissipation (mW)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Lead Standoff	No
Supplier Color	Red
Special Color	Red
High Power	No
High Brightness	No
Packing Method	Tape and Reel
Original Package	Case 0805(2012Metric)
Pin Count	2
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Height	0.79
Package Length	2.01
Package Width	1.25
PCB changed	2
