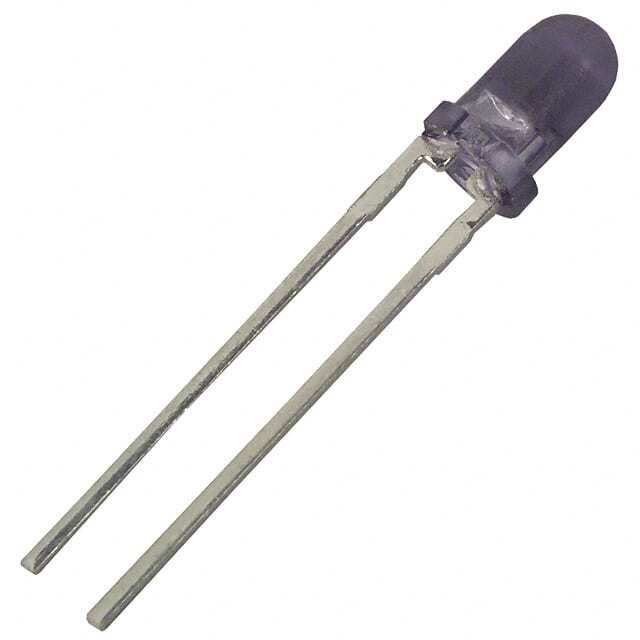

OP506B

SKU: 27923

Manufacturer: TT Electronics / IRC

Phototransistor Chip Silicon 935nm 2-Pin T-1 Bag

2890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Chip
Phototransistor Type	Phototransistor
Lens Shape Type	Domed
Lens Color	Blue
Body Material	Silicon
Number of Channels per Chip	1
Polarity	NPN
Viewing Orientation	Top View
Peak Wavelength (nm)	935
Maximum Light Current (uA)	5950
Maximum Collector Current (mA)	20
Maximum Dark Current (nA)	100
Maximum Emitter-Collector Voltage (V)	5
Collector-Emitter Voltage-Max (V)	30
Maximum Collector-Emitter Saturation Voltage (V)	0.4
Maximum Power Dissipation (mW)	100
Fabrication Technology	NPN Transistor
Operating Temperature-Min	-40
Operating Temperature-Max	100
Packing Method	Bag
Standard Package Method	T-1
Original Package	T-1
Pin Count	2
Diameter	4.19(Max)
Terminal Form	Through Hole
Package Height	5.08(Max) + 0.76
PCB changed	2
