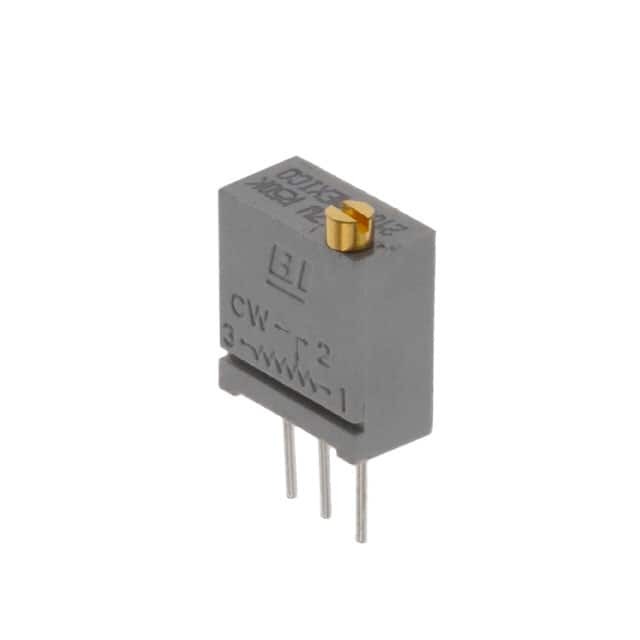

67WR50KLF

SKU: 24356

Manufacturer: TT Electronics / BI Technologies

Res Cermet Trimmer 50K Ohm 10% 0.5W(1/2W) 20(Elec)Turns 2.29mm (9.53 X 4.95 X 11.98mm) Pin Thru-Hole Box

890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.70
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Trimmer
Resistance Value (Ohm)	50K
Tolerance	10%
Voltage Rating-Max (V)	200
Power Rating (W)	0.5 (1/2)
Technology	Cermet
Operating Temperature-Min	-55
Operating Temperature-Max	125
Temperature Coefficient (ppm/°C)	±100
Special Features	Long Life
Linear or Logarithmic	Lin
Terminal Form	Pin
Positions of Adjustment	Top
Shaft Diameter (mm)	2.29
Number of Turns (Turns)	20(Elec)
Number of Elements	1
Electrical Rotation (°)	7200
Number of Electrical Turns (Turns)	20
Mechanical Rotational Life (Cycles)	200
Packing Method	Box
Product Shape	Square
Length (mm)	9.53
Depth (mm)	4.95
Height (mm)	11.98
Product Weight (g)	1.1
Length Tolerance (mm)	±0.38
