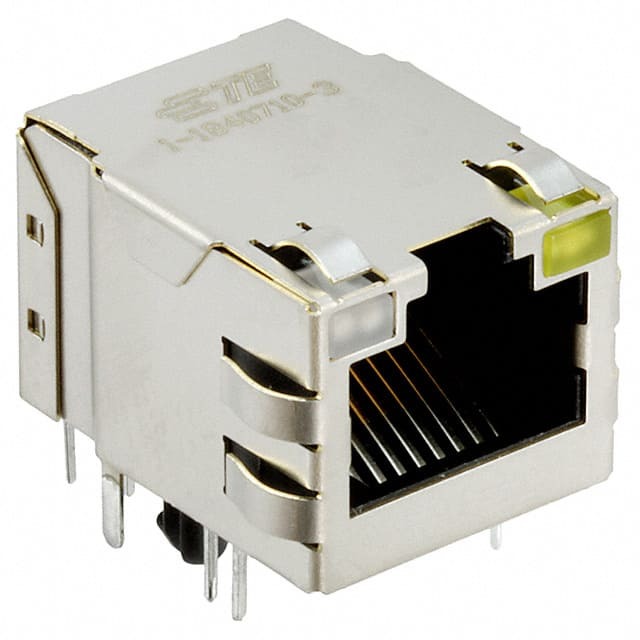

1-1840710-3

SKU: 5724

Manufacturer: TRP Connector

Conn RJ-45 F 8 POS 1.27mm Solder RA Thru-Hole 14 Terminal 1 Port

2800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8536.69.80.00
Automotive	No
PPAP	No
Type	RJ-45
Gender	F
Number of Terminals	14
Number of Contacts	8
Number of Ports	1
Number of Loaded Positions	10
Termination Method	Solder
Terminal Pitch (mm)	1.27
Body Orientation	Right Angle
Left/Right LED Color	(Green
Integrated Magnetics	Yes
Shell Body Material	Brass
Shell Plating	Semi Bright Nickel
Operating Temperature-Min	-40
Shielding	Yes
Operating Temperature-Max	85
Product Style	Single
Length (mm)	16.38
Depth (mm)	21.59
Height (mm)	14.1
Number of Cores per Jack	12
Ethernet Speed	10BASE-T
Spring Option	Yes
Tab Direction	Up
Distance Between Begs (mm)	11.43
Distance Between Shield Pins (mm)	15.49
