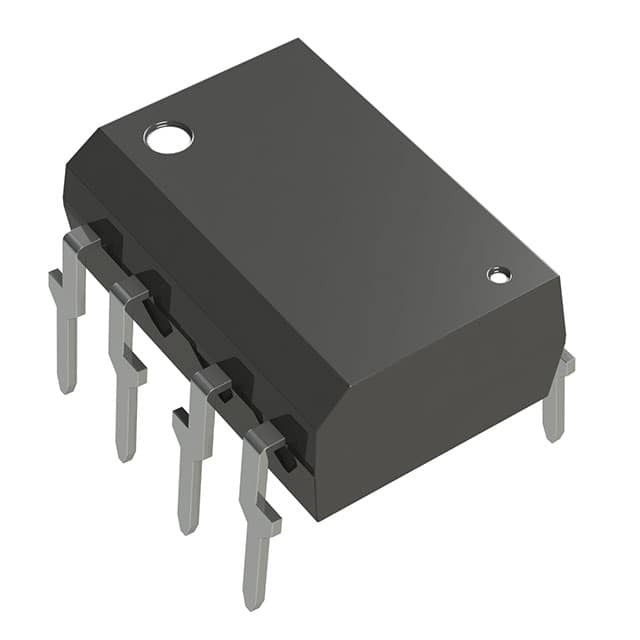

TLP2530

SKU: 78661

Manufacturer: Toshiba

Optocoupler DC-IN 2-CH Transistor With Base DC-OUT 8-Pin PDIP Magazine

3850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
Automotive	No
PPAP	No
Output Type	DC
Input Type	DC
Output Device	Transistor With Base
Number of Channels per Chip	2
Minimum Isolation Voltage (Vrms)	2500
Operating Temperature-Min	-25
Operating Temperature-Max	85
Maximum Forward Voltage (V)	1.7
Maximum Current Transfer Ratio (%)	30(Typ)
Standard	UL
Maximum Collector Current (mA)	8
Maximum Power Dissipation (mW)	45
Maximum Reverse Voltage (V)	5
Typical Forward Voltage (V)	1.65
Maximum Forward Current (mA)	25
Packing Method	Magazine
Minimum Current Transfer Ratio (%)	7
Current Transfer Ratio Test Current (mA)	16
Standard Package Method	DIP
Pin Count	8
Original Package	PDIP
Terminal Form	Through Hole
Package Height	3.65
Package Length	9.66
Package Width	6.4
PCB changed	8
