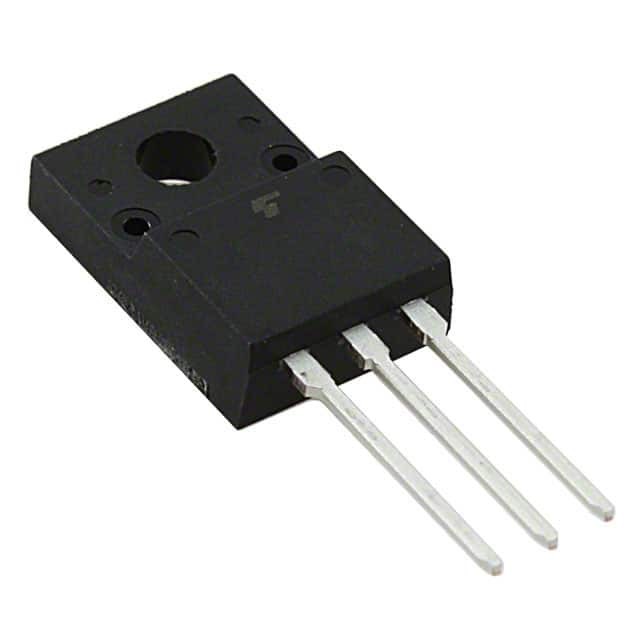

TK15A60D

SKU: 156592

Manufacturer: Toshiba

Trans MOSFET N-CH Si 600V 15A 3-Pin(3+Tab) TO-220SIS

5450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Single
Process Technology	pi-MOS VII
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	600
Maximum Gate Source Voltage (V)	±30
Maximum Gate Threshold Voltage (V)	4
Maximum Continuous Drain Current (A)	15
Maximum Gate Source Leakage Current (nA)	1000
Maximum IDSS (uA)	10
Maximum Drain Source Resistance (mOhm)	370@10V
Typical Gate Charge @ Vgs (nC)	45@10V
Typical Gate Charge @ 10V (nC)	45
Typical Input Capacitance @ Vds (pF)	2600@25V
Maximum Power Dissipation (mW)	50000
Typical Fall Time (ns)	25
Typical Rise Time (ns)	50
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TO-220SIS
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	15
Package Length	10
Package Width	4.5
PCB changed	3
