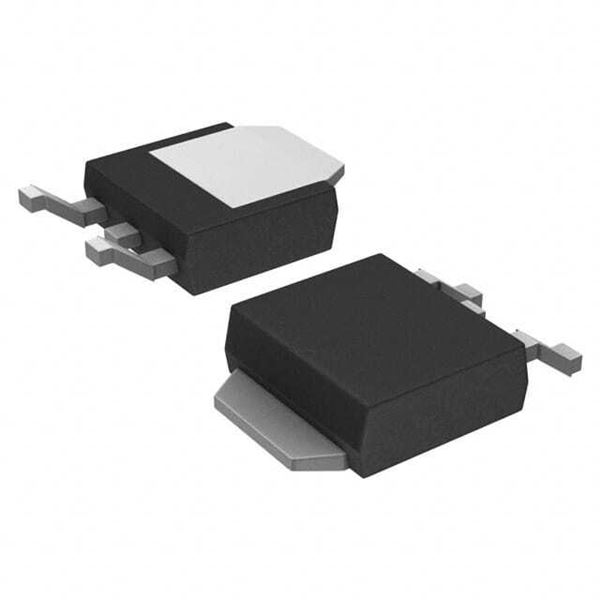

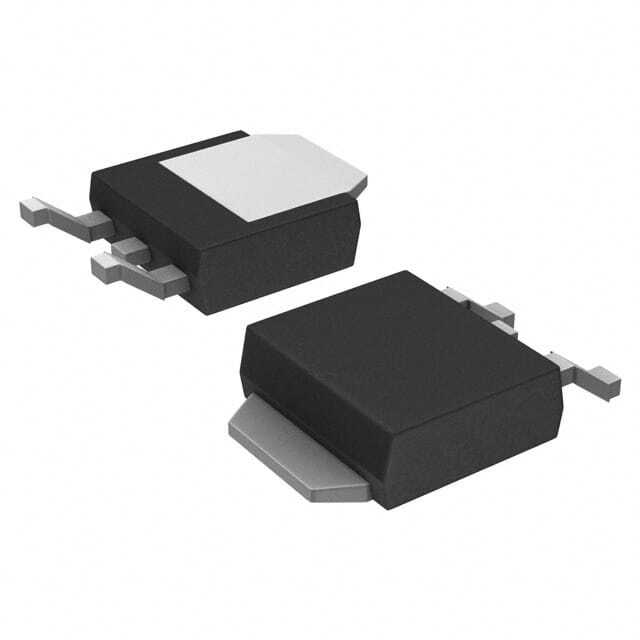

TK11P65W

SKU: 99832

Manufacturer: Toshiba

Trans MOSFET N-CH Si 650V 11.1A 3-Pin(2+Tab) DPAK

680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Single
Process Technology	DTMOSIV
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	650
Maximum Gate Source Voltage (V)	±30
Maximum Gate Threshold Voltage (V)	3.5
Maximum Continuous Drain Current (A)	11.1
Maximum Gate Source Leakage Current (nA)	1000
Maximum IDSS (uA)	10
Maximum Drain Source Resistance (mOhm)	440@10V
Typical Gate Charge @ Vgs (nC)	25@10V
Typical Gate Charge @ 10V (nC)	25
Typical Input Capacitance @ Vds (pF)	890@300V
Maximum Power Dissipation (mW)	100000
Typical Fall Time (ns)	5.5
Typical Rise Time (ns)	23
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	DPAK
Pin Count	3
Standard Package Method	TO-252
Terminal Form	Surface Mount
Package Height	2.3
Package Length	6.6
Package Width	6.1
PCB changed	2
Tab	Tab
