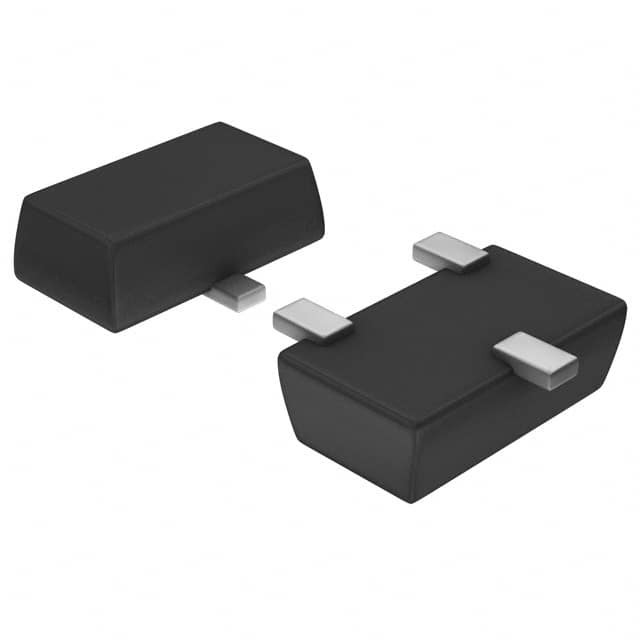

TCS40DLR

SKU: 113954

Manufacturer: Toshiba

Hall Effect Sensor 5mA Omnipolar 2.5V/3.3V/5V 3-Pin SOT-23F

960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
Automotive	No
PPAP	No
Magnetic Type	Omnipolar
Module/IC Classification	IC
Minimum Magnetic Sensor Release Point (Gs)	40
Typical Magnetic Sensor Hysteresis (Gs)	14
Maximum Magnetic Sensor Operating Point (Gs)	44
Maximum Output Current (mA)	5
Operating Supply Voltage-Min (V)	2.3
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Current (uA)	13.2
Maximum Power Dissipation (mW)	1000
Operating Temperature-Min	-40
Operating Temperature-Max	85
Original Package	SOT-23F
Pin Count	3
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Length	2.9
Package Width	1.8
PCB changed	3
