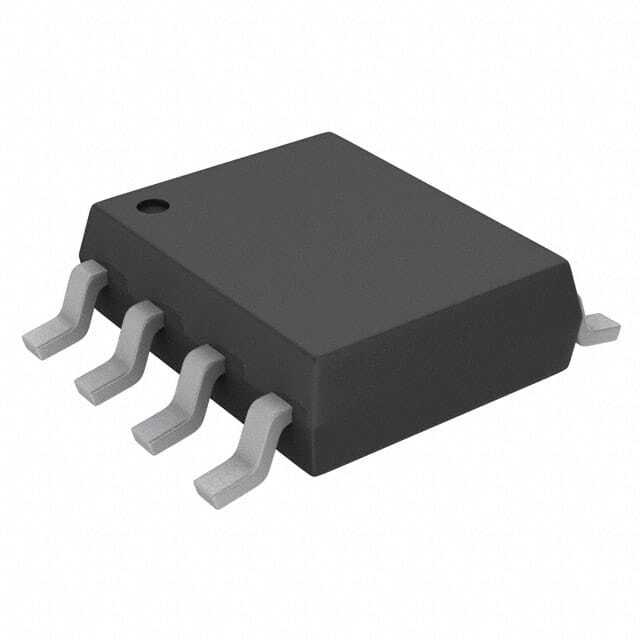

TC7W02FU Toshiba

TC7W02FU

SKU: 135248

Manufacturer: Toshiba

NOR Gate 2-Element 2-IN CMOS 8-Pin SM

Request Free Samples

85260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

ECCN (US)	EAR99
Part Status	LTB
Automotive	No
PPAP	No
Logic Family	HC
Logic Function	NOR
Number of Elements per pcs	2
Number of Element Inputs	2-IN
Number of Output Enables per Element	0
Number of Selection Inputs per Element	0
Number of Element Outputs	1
Maximum Propagation Delay Time @ Maximum CL (ns)	75@2V
Absolute Propagation Delay Time (ns)	95
Process Technology	CMOS
Maximum Low Level Output Current (mA)	5.2
Maximum High Level Output Current (mA)	-5.2
Operating Supply Voltage-Min (V)	2
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	6
Maximum Quiescent Current (uA)	1
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Standard Package Method	SOP
Original Package	SM
Pin Count	8
Terminal Form	Surface Mount
Package Height	1.05
Package Length	2.9
Package Width	2.8
