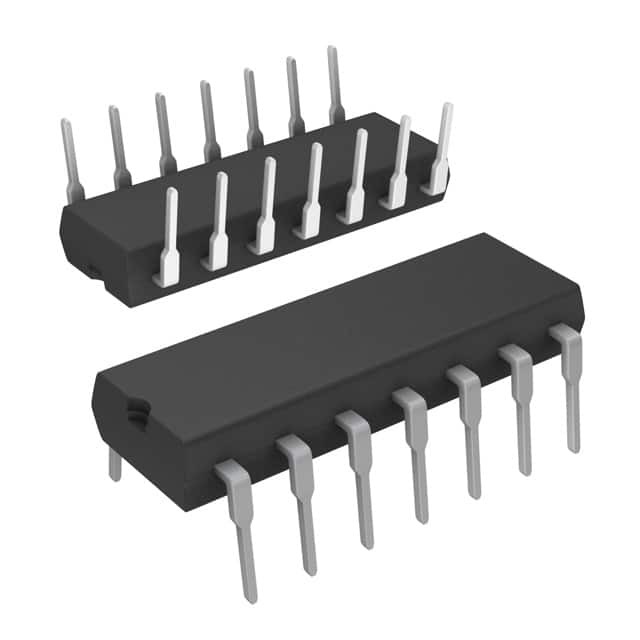

TC74AC00P

SKU: 21971

Manufacturer: Toshiba

NAND Gate 4-Element 2-IN CMOS 14-Pin PDIP Magazine

100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Logic Family	AC
Logic Function	NAND
Number of Elements per pcs	4
Number of Element Inputs	2-IN
Number of Output Enables per Element	0
Number of Selection Inputs per Element	0
Number of Element Outputs	1
Maximum Propagation Delay Time @ Maximum CL (ns)	11.2@3.3V
Absolute Propagation Delay Time (ns)	12.9
Process Technology	CMOS
Maximum Low Level Output Current (mA)	24
Maximum High Level Output Current (mA)	-24
Operating Supply Voltage-Min (V)	2
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (uA)	4
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Magazine
Standard Package Method	DIP
Original Package	PDIP
Pin Count	14
Terminal Form	Through Hole
Package Height	3.5
Package Length	19.75(Max)
Package Width	6.4
PCB changed	14
