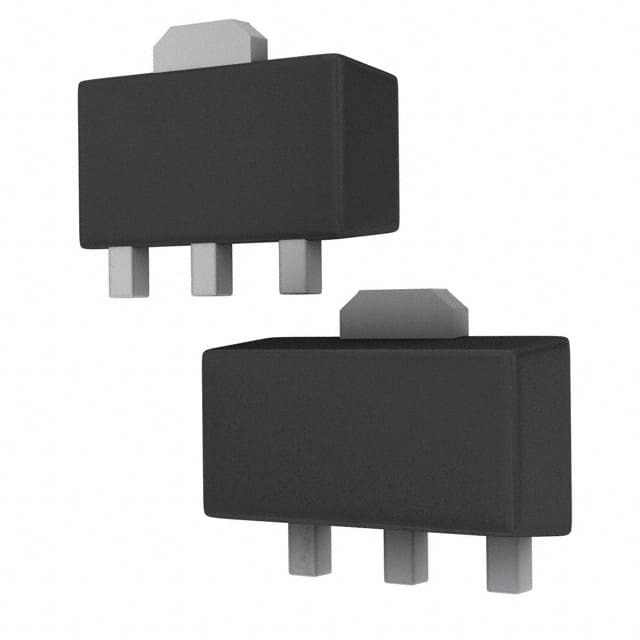

TA78L05F

SKU: 142311

Manufacturer: Toshiba

Standard Regulator Pos 5V 0.15A 4-Pin(3+Tab) PW-Mini

3640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Supplier Unconfirmed
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Standard
Number of Outputs	1
Polarity	Positive
Output Type	Fixed
Output Voltage (V)	5
Maximum Output Current (A)	0.15
Maximum Input Voltage (V)	35
Line Regulation	150mV
Load Regulation	60mV
Maximum Quiescent Current (mA)	6
Maximum Power Dissipation (mW)	500
Junction to Ambient	250°C/W
Special Features	Current Limit
Operating Temperature-Min	-30
Operating Temperature-Max	85
Original Package	PW-Mini
Pin Count	4
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1.6(Max)
Package Length	4.6(Max)
Package Width	2.5
PCB changed	3
Tab	Tab
