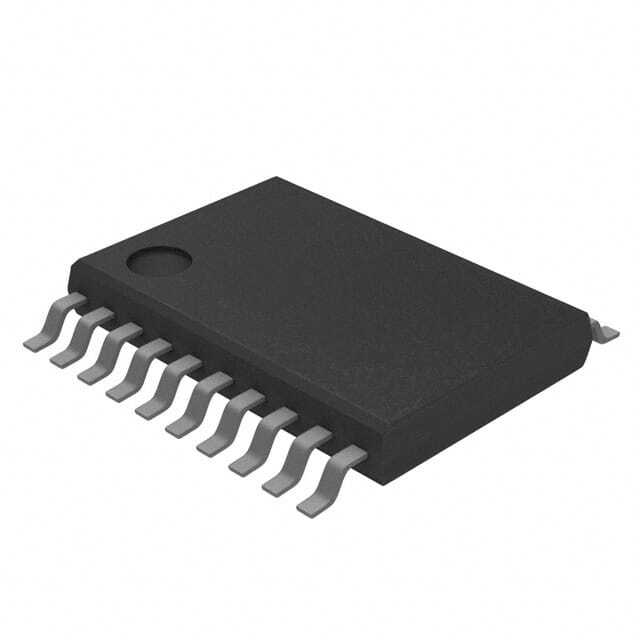

74VHCT574AFT

SKU: 24418

Manufacturer: Toshiba

Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element Automotive 20-Pin TSSOP-B T/R

1080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Logic Family	VHCT
Logic Function	D-Type Bus Interface
Number of Channels per Chip	8
Number of Elements per pcs	1
Number of Element Inputs	8
Number of Element Outputs	8
Number of Output Enables per Element	1
Bus Hold	No
Polarity	Non-Inverting
Triggering Type	Positive-Edge
Maximum Propagation Delay Time @ Maximum CL (ns)	10.4@4.5V to 5.5V
Absolute Propagation Delay Time (ns)	14
Process Technology	CMOS
Input Signal Type	Single-Ended
Output Type	3-State
Maximum Low Level Output Current (mA)	8
Maximum High Level Output Current (mA)	-8
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (mA)	0.004
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Standard Package Method	SOP
Original Package	TSSOP-B
Pin Count	20
Terminal Form	Surface Mount
Package Height	1
Package Width	4.4
PCB changed	20
