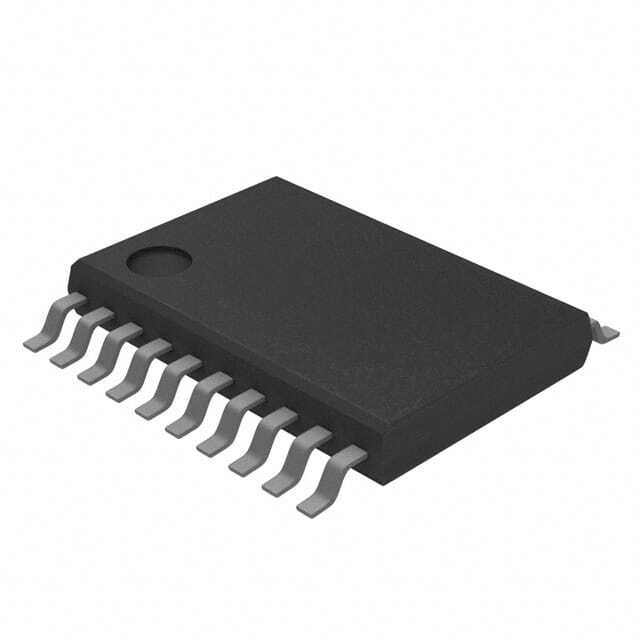

74VHCT245AFT

SKU: 59997

Manufacturer: Toshiba

Bus XCVR Single 8-CH 3-ST Automotive 20-Pin TSSOP-B T/R

1390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Logic Family	VHCT
Logic Function	Bus Transceiver
Data Flow Direction	Bi-Directional
Number of Elements per pcs	1
Number of Channels per Chip	8
Number of Selection Inputs per Element	0
Number of Output Enables per Element	1 Low
Number of Input Enables per Element	0
Number of Direction Control Inputs	1 Low/High
Bus Hold	No
Polarity	Non-Inverting
Absolute Propagation Delay Time (ns)	16.5
Maximum Propagation Delay Time @ Maximum CL (ns)	8.7@5V
Propagation Delay Test Condition (pF)	50
Process Technology	CMOS
Input Level	TTL
Output Level	CMOS
Output Type	3-State
Maximum Low Level Output Current (mA)	8
Maximum High Level Output Current (mA)	-8
Maximum Quiescent Current (uA)	4
Operating Supply Voltage-Min (V)	4.5
Operating Supply Voltage-Max (V)	5.5
Maximum Power Dissipation (mW)	180
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Standard Package Method	SOP
Original Package	TSSOP-B
Pin Count	20
Terminal Form	Surface Mount
Package Height	1
Package Width	4.4
PCB changed	20
