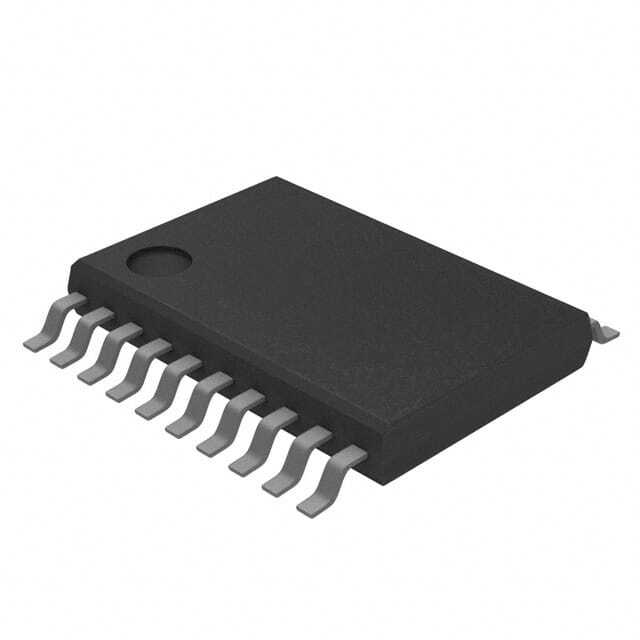

74VHC9541FT

SKU: 38623

Manufacturer: Toshiba

Universal Schmitt Trigger Buffer 8-CH Inverting/Non-Inverting 3-ST CMOS Automotive 20-Pin TSSOP-B T/R

1660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Logic Family	VHC
Logic Function	Universal Schmitt Trigger Buffer
Number of Elements per pcs	1
Number of Channels per Chip	8
Number of Inputs per Chip	8
Number of Input Enables per Chip	1 Low/High
Number of Outputs per Chip	8
Number of Output Enables per Chip	1 Low
Bus Hold	No
Polarity	Inverting/Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	8.5@5V
Absolute Propagation Delay Time (ns)	20.5
Process Technology	CMOS
Input Signal Type	Single-Ended
Output Type	3-State
Maximum Low Level Output Current (mA)	8
Maximum High Level Output Current (mA)	-8
Operating Supply Voltage-Min (V)	2
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Tolerant I/Os (V)	5 Inputs
Maximum Quiescent Current (uA)	4
Propagation Delay Test Condition (pF)	50
Maximum Power Dissipation (mW)	180
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Standard Package Method	SOP
Original Package	TSSOP-B
Pin Count	20
Terminal Form	Surface Mount
Package Height	1
Package Width	4.4
PCB changed	20
