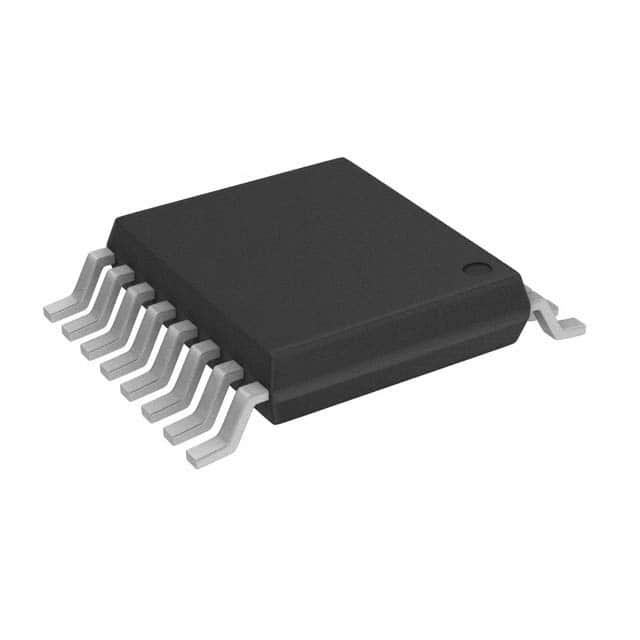

74VHC138FT

SKU: 24414

Manufacturer: Toshiba

Decoder/Demultiplexer Single 3-to-8 Automotive 16-Pin TSSOP-B T/R

420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Logic Family	VHC
Logic Function	Decoder/Demultiplexer
Demultiplexing Capability	1-of-8
Number of Elements per pcs	1
Number of Element Inputs	3
Number of Input Enables per Element	3
Number of Element Outputs	8
Number of Output Enables per Element	0
Polarity	Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	15.8@3.3V
Absolute Propagation Delay Time (ns)	18.5
Process Technology	CMOS
Maximum Low Level Output Current (mA)	8
Maximum High Level Output Current (mA)	-8
Operating Supply Voltage-Min (V)	2
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (mA)	0.004
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	TSSOP-B
Pin Count	16
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1
Package Width	4.4
PCB changed	16
