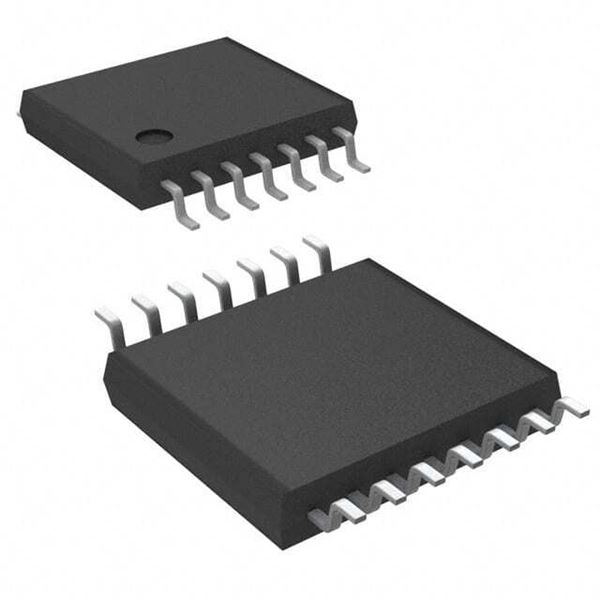

74VHC08FT

SKU: 88027

Manufacturer: Toshiba

AND Gate 4-Element 2-IN CMOS Automotive 14-Pin TSSOP-B T/R

1120 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Logic Family	VHC
Logic Function	AND
Number of Elements per pcs	4
Number of Element Inputs	2-IN
Number of Output Enables per Element	0
Number of Selection Inputs per Element	0
Number of Element Outputs	1
Maximum Propagation Delay Time @ Maximum CL (ns)	12.3@3.3V
Absolute Propagation Delay Time (ns)	14
Process Technology	CMOS
Maximum Low Level Output Current (mA)	8
Maximum High Level Output Current (mA)	-8
Operating Supply Voltage-Min (V)	2
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (uA)	2
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Standard Package Method	SOP
Original Package	TSSOP-B
Pin Count	14
Terminal Form	Surface Mount
Package Height	1
Package Width	4.4
PCB changed	14
