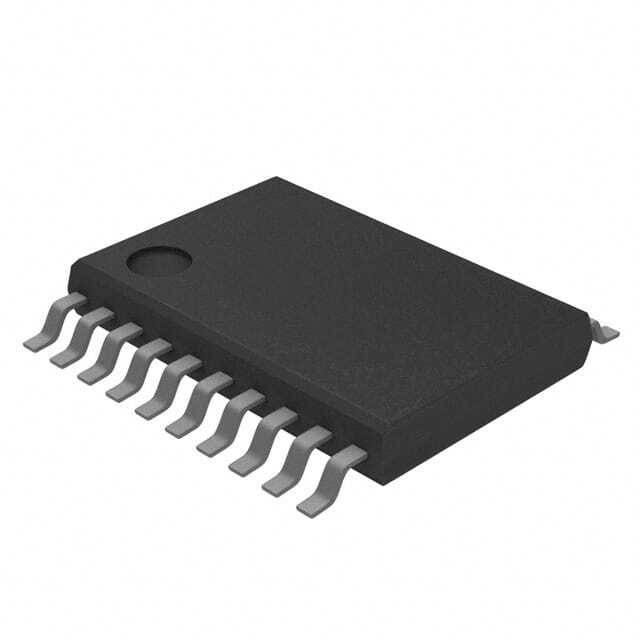

74LCX540FT

SKU: 73904

Manufacturer: Toshiba

Buffer/Line Driver 8-CH Inverting 3-ST CMOS 20-Pin TSSOP-B T/R

1120 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	LCX
Logic Function	Buffer/Line Driver
Number of Elements per pcs	1
Number of Channels per Chip	8
Number of Inputs per Chip	8
Number of Input Enables per Chip	0
Number of Outputs per Chip	8
Number of Output Enables per Chip	2 Low
Bus Hold	No
Polarity	Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	6.5@3.3V
Absolute Propagation Delay Time (ns)	34
Process Technology	CMOS
Input Signal Type	Single-Ended
Output Type	3-State
Maximum Low Level Output Current (mA)	24
Maximum High Level Output Current (mA)	-24
Operating Supply Voltage-Min (V)	1.65
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Tolerant I/Os (V)	5
Maximum Quiescent Current (uA)	10
Propagation Delay Test Condition (pF)	50
Maximum Power Dissipation (mW)	180
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Standard Package Method	SOP
Original Package	TSSOP-B
Pin Count	20
Terminal Form	Surface Mount
Package Height	1
Package Width	4.4
PCB changed	20
