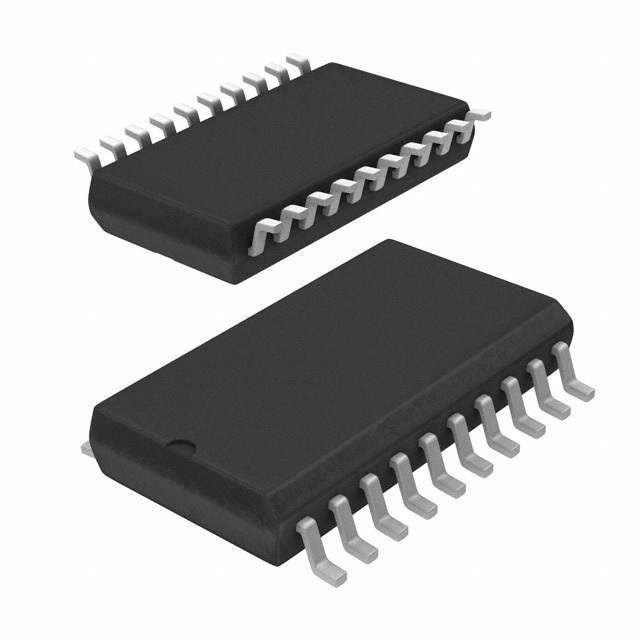

74HCT240D

SKU: 80918

Manufacturer: Toshiba

Buffer/Line Driver 8-CH Inverting 3-ST CMOS 20-Pin SOIC T/R

14400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	HCT
Logic Function	Buffer/Line Driver
Number of Elements per pcs	2
Number of Channels per Chip	8
Number of Inputs per Chip	8
Number of Input Enables per Chip	0
Number of Outputs per Chip	8
Number of Output Enables per Chip	2 Low
Bus Hold	No
Polarity	Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	30@4.5V
Absolute Propagation Delay Time (ns)	38
Process Technology	CMOS
Input Signal Type	Single-Ended
Output Type	3-State
Maximum Low Level Output Current (mA)	6
Maximum High Level Output Current (mA)	-6
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (uA)	8
Propagation Delay Test Condition (pF)	150
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Standard Package Method	SOP
Original Package	SOIC
Pin Count	20
Terminal Form	Surface Mount
Package Height	2.25
Package Length	13.1(Max)
Package Width	7.5
PCB changed	20
