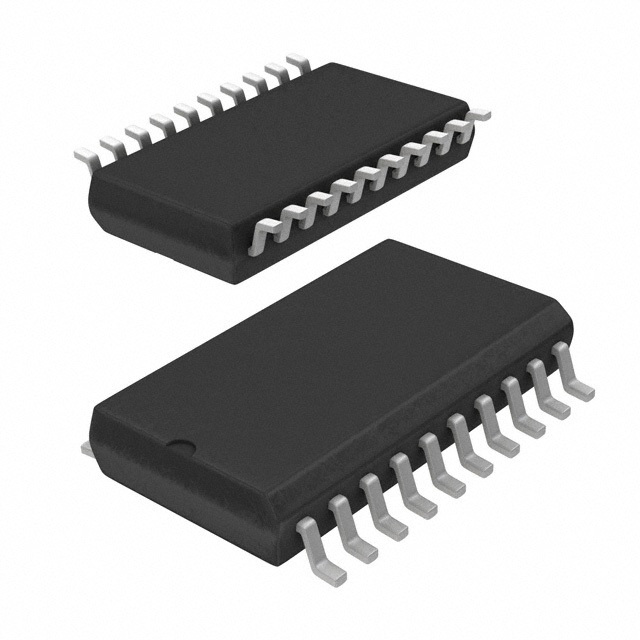

74HC574D

SKU: 66910

Manufacturer: Toshiba

Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin SOIC T/R

147300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	HC
Logic Function	D-Type Bus Interface
Number of Channels per Chip	8
Number of Elements per pcs	1
Number of Element Inputs	8
Number of Element Outputs	8
Number of Output Enables per Element	1
Bus Hold	No
Polarity	Non-Inverting
Triggering Type	Positive-Edge
Maximum Propagation Delay Time @ Maximum CL (ns)	190@2V
Absolute Propagation Delay Time (ns)	240
Process Technology	CMOS
Input Signal Type	Single-Ended
Output Type	3-State
Maximum Low Level Output Current (mA)	7.8
Maximum High Level Output Current (mA)	-7.8
Operating Supply Voltage-Min (V)	2
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	6
Maximum Quiescent Current (mA)	0.004
Propagation Delay Test Condition (pF)	150
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Standard Package Method	SOP
Original Package	SOIC
Pin Count	20
Terminal Form	Surface Mount
Package Height	2.25
Package Length	13.1(Max)
Package Width	7.5
PCB changed	20
