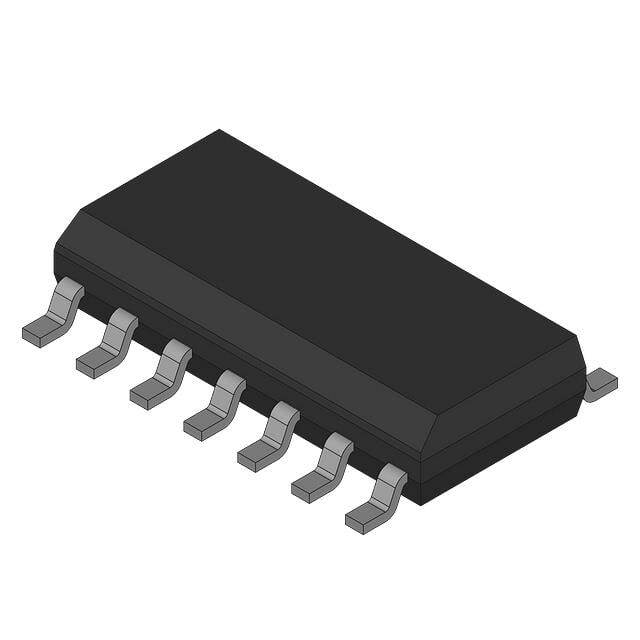

74HC393D

SKU: 80913

Manufacturer: Toshiba

Counter/Divider Dual 4-Bit Binary UP 14-Pin SOIC T/R

51350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Binary
Logic Family	HC
Logic Function	Counter/Divider
Operation Mode	UP Counter
Number of Elements per pcs	2
Number of Element Inputs	1
Number of Count Input Enables	0
Number of Selection Inputs per Element	0
Number of Element Outputs	4
Number of Stages	4
Reset Type	Asynchronous
Direction Type	Uni-Directional
Triggering Type	Negative-Edge
Maximum Propagation Delay Time @ Maximum CL (ns)	260@2V
Absolute Propagation Delay Time (ns)	325
Process Technology	CMOS
Operating Supply Voltage-Min (V)	2
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	6
Maximum Quiescent Current (mA)	0.004
Propagation Delay Test Condition (pF)	50
Parallel Enable Input	No
Terminal Count Output	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SOIC
Pin Count	14
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.38
Package Length	8.95(Max)
Package Width	3.9
PCB changed	14
