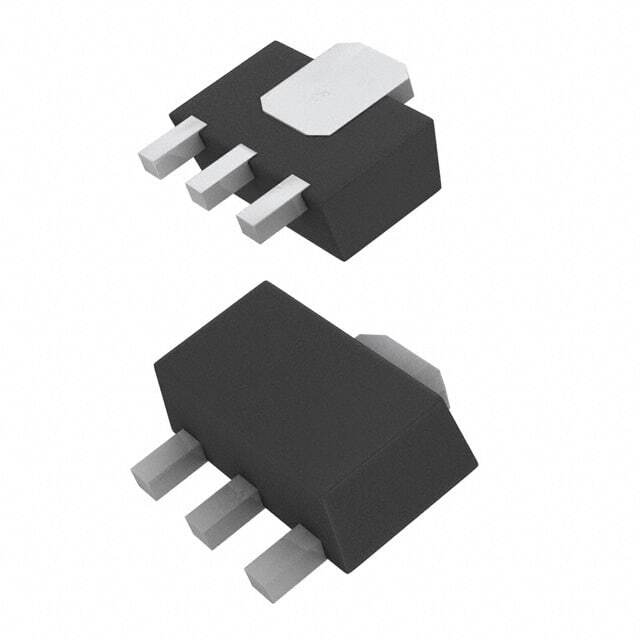

2SA1213-Y

SKU: 6964

Manufacturer: Toshiba

Trans GP BJT PNP 50V 2A 4-Pin(3+Tab) PW-Mini

46250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	PNP
Product Category	Bipolar Small Signal
Body Material	Si
Configuration	Single Dual Collector
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	50
Collector-Emitter Voltage-Max (V)	50
Maximum Emitter Base Voltage (V)	5
Maximum Base Emitter Saturation Voltage (V)	1.2@0.05A@1A
Maximum Collector-Emitter Saturation Voltage (V)	0.5@0.05A@1A
Maximum DC Collector Current (A)	2
Maximum Collector Cut-Off Current (nA)	100
Minimum DC Current Gain	120@0.5A@2V
Maximum Power Dissipation (mW)	1000
Maximum Transition Frequency (MHz)	120(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	PW-Mini
Pin Count	4
Terminal Form	Surface Mount
Package Height	1.6(Max)
Package Length	4.6(Max)
Package Width	2.5
PCB changed	3
