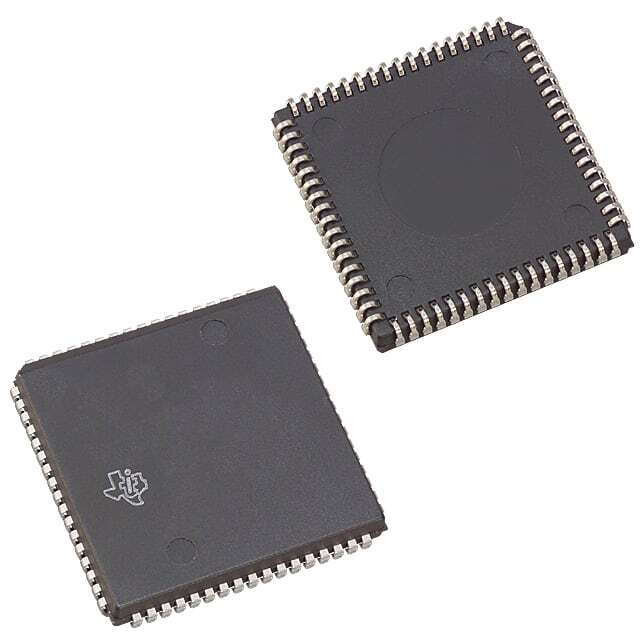

VECANA01

SKU: 50935

Manufacturer: Texas Instruments

10-Channel Triple ADC SAR 78ksps 12-bit Serial 68-Pin PLCC Tube

4960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	12bit
Number of ADCs	3
Number of Input Channels	10
Sampling Rate	78ksps
Digital Interface Type	Serial (SPI)
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Dual
Input Voltage	±0.5V/±1V/±2V/±2.5V
Minimum Dual Supply Voltage (V)	±4.75
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±5.25
Typical Power Dissipation (mW)	225
Integral Nonlinearity Error	±2LSB
Full Scale Error	2%FSR
No Missing Codes (bit)	12
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Original Package	PLCC
Pin Count	68
Standard Package Method	LCC
Terminal Form	Surface Mount
Package Height	4.57(Max) - 0.51(Min)
Package Length	24.33(Max)
Package Width	24.33(Max)
PCB changed	68
