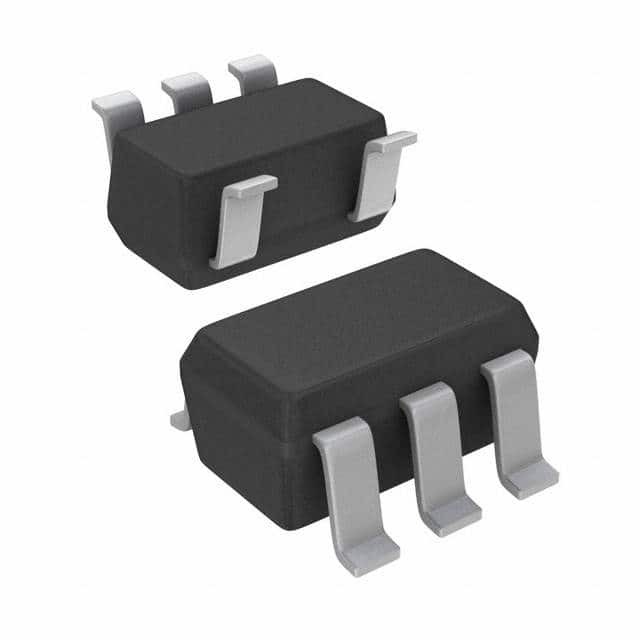

V62/06652-03XE

SKU: 137414

Manufacturer: Texas Instruments

LDO Regulator Pos 1.8V 0.15A 5-Pin SOT-23 T/R

3890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±0.5
Output Type	Fixed
Output Voltage (V)	1.8
Maximum Output Current (A)	0.15
Minimum Input Voltage (V)	1.7
Maximum Input Voltage (V)	5.5
Maximum Dropout Voltage @ Current (V)	0.1@150mA
Line Regulation	0.01%/V(Typ)
Load Regulation	0.002%/mA(Typ)
Maximum Power Dissipation (mW)	638
Junction to Ambient	255°C/W
Junction to Case	64°C/W
Special Features	Thermal Shutdown Protection
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Original Package	SOT-23
Pin Count	5
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1.1
Package Length	3.05(Max)
Package Width	1.75(Max)
PCB changed	5
