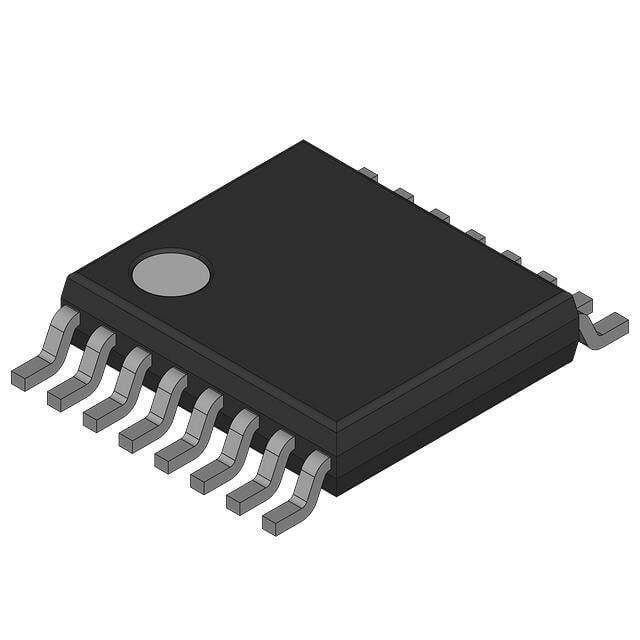

ULN2003APW

SKU: 100202

Manufacturer: Texas Instruments

Trans Darlington NPN 50V 0.5A 16-Pin TSSOP Tube

10100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Type	NPN
Configuration	Array 7
Number of Elements per pcs	7
Collector-Emitter Voltage-Max (V)	50
Maximum Emitter Base Voltage (V)	30
Maximum Continuous DC Collector Current (A)	0.5
Operating Junction Temperature (°C)	-40 to 125
Maximum Collector-Emitter Saturation Voltage (V)	1.1@100mA
Operating Temperature-Min	-40
Operating Temperature-Max	70
Packing Method	Tube
Pin Count	16
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	16
