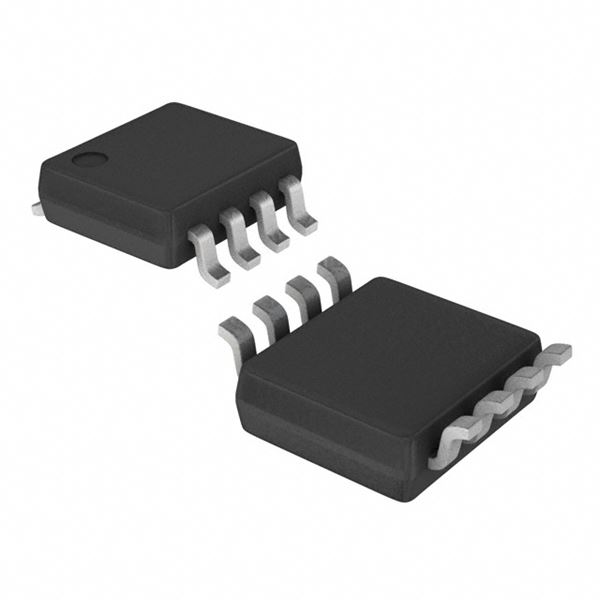

UCC38C42DGK

SKU: 57957

Manufacturer: Texas Instruments

Current Mode PWM Controller 18V 200mA 1000kHz 8-Pin VSSOP Tube

3580 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Current Mode PWM Controller
Control Method	Current
Topology	Boost
Number of PWM Outputs	1
Oscillator Accuracy (kHz)	53
Switching Frequency (kHz)	1000
Maximum Duty Cycle (%)	100
Output Current (mA)	200(Max)
Rise Time (ns)	25
Fall Time (ns)	20
Process Technology	BiCMOS
Output Voltage (V)	18(Max)
Operating Supply Voltage (V)	18(Max)
Operating Supply Voltage-Max (V)	18
Maximum Supply Current (mA)	3
Adjustable Output	No
On/Off Pin	No
Synchronous Pin	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Pin Count	8
Standard Package Method	SOP
Original Package	VSSOP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
