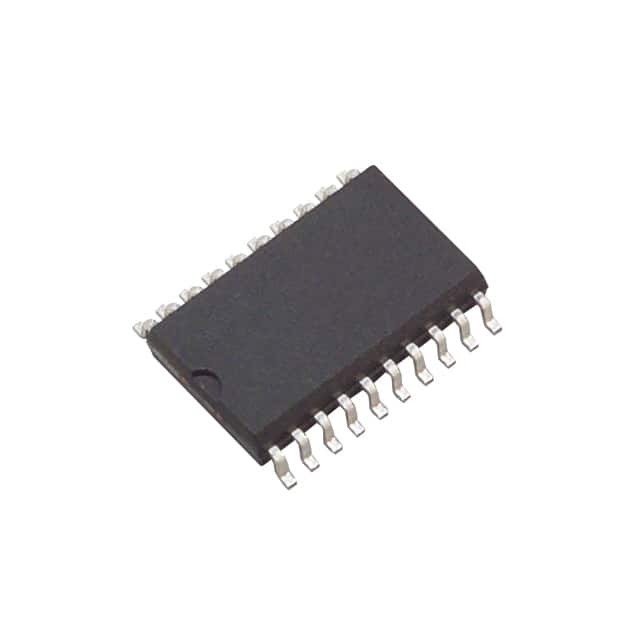

UCC3895DW

SKU: 93084

Manufacturer: Texas Instruments

Resonant Controllers 100mA 1000kHz 20-Pin SOIC Tube

2040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Resonant Controllers
Control Method	Current/Voltage
Topology	Full-Bridge
Number of PWM Outputs	4
Switching Frequency (kHz)	1000
Maximum Duty Cycle (%)	100
Output Current (mA)	100(Max)
Rise Time (ns)	20
Fall Time (ns)	20
Process Technology	BiCMOS
Operating Supply Voltage (V)	10 to 16.5
Operating Supply Voltage-Min (V)	10
Operating Supply Voltage-Max (V)	16.5
Maximum Supply Current (mA)	6
Maximum Power Dissipation (mW)	650
On/Off Pin	No
Synchronous Pin	Yes
UVLO Turn-On Threshold (V)	11
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Pin Count	20
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	13(Max)
Package Width	7.6(Max)
PCB changed	20
