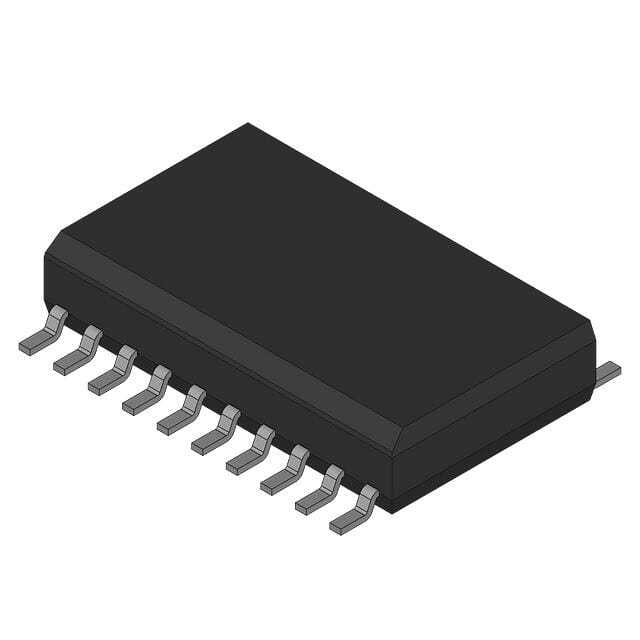

UCC38503DWTR

SKU: 156951

Manufacturer: Texas Instruments

Power Factor Correction and PWM Controller 115kHz 20-Pin SOIC T/R

3350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Power Factor Correction and PWM Controller
Operation Mode	CCM
Topology	Boost
Operating Supply Voltage-Max (V)	18
UVLO Turn-Off Threshold (V)	9.7
UVLO Turn-On Threshold (V)	10.5
Switching Frequency (kHz)	115
Maximum Duty Cycle (%)	100
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Pin Count	20
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	13(Max)
Package Width	7.6(Max)
PCB changed	20
