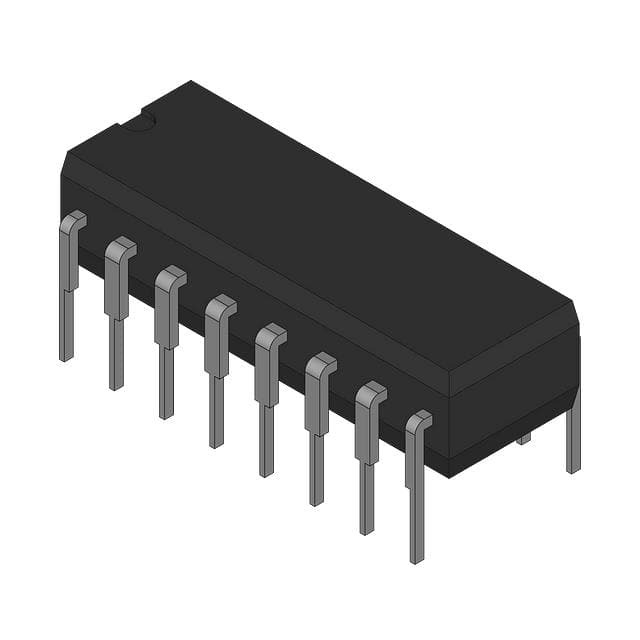

UCC3810N

SKU: 78970

Manufacturer: Texas Instruments

Current Mode PWM Controller 1A 1000kHz 16-Pin PDIP Tube

50 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Current Mode PWM Controller
Control Method	Current Mode PWM Controller
Topology	Boost
Number of PWM Outputs	2
Switching Frequency (kHz)	1000
Maximum Duty Cycle (%)	50
Rise Time (ns)	20
Output Current (mA)	1000
Fall Time (ns)	30
Process Technology	BiCMOS
Operating Supply Voltage-Max (V)	11
Maximum Supply Current (mA)	14.5
Adjustable Output	No
On/Off Pin	Yes
Synchronous Pin	Yes
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tube
Original Package	PDIP
Pin Count	16
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	5.08(Max) - 0.51(Min)
Package Length	19.69(Max)
Package Width	6.6(Max)
PCB changed	16
