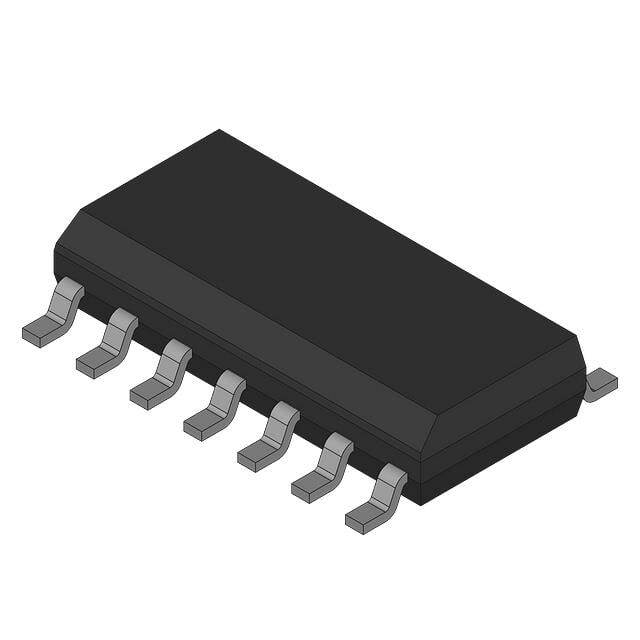

UCC3570D

SKU: 50882

Manufacturer: Texas Instruments

Voltage Mode PWM Controller 1A 500kHz 14-Pin SOIC

4870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
Automotive	No
PPAP	No
Type	Voltage Mode PWM Controller
Control Method	Voltage Mode PWM Controller
Number of PWM Outputs	1
Switching Frequency (kHz)	500
Rise Time (ns)	20
Output Current (mA)	1000(Max)
Fall Time (ns)	20
Operating Supply Voltage (V)	15
Operating Supply Voltage-Min (V)	13.5
Typical Operating Supply Voltage (V)	15
Operating Supply Voltage-Max (V)	16
Maximum Supply Current (mA)	1.5
Adjustable Output	No
On/Off Pin	No
Synchronous Pin	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Pin Count	14
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	8.75(Max)
Package Width	4(Max)
PCB changed	14
