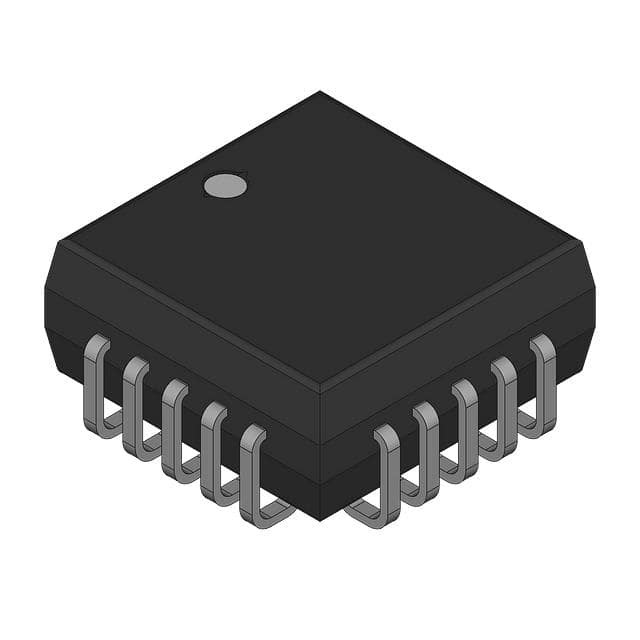

UCC2895Q

SKU: 43710

Manufacturer: Texas Instruments

Resonant Controllers 100mA 1000kHz 20-Pin PLCC Tube

2520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	Resonant Controllers
Control Method	Current/Voltage
Topology	Full-Bridge
Number of PWM Outputs	4
Switching Frequency (kHz)	1000
Maximum Duty Cycle (%)	100
Output Current (mA)	100(Max)
Rise Time (ns)	20
Fall Time (ns)	20
Process Technology	BiCMOS
Operating Supply Voltage (V)	10 to 16.5
Operating Supply Voltage-Min (V)	10
Operating Supply Voltage-Max (V)	16.5
Maximum Supply Current (mA)	6
Adjustable Output	No
On/Off Pin	No
Synchronous Pin	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Original Package	PLCC
Pin Count	20
Standard Package Method	LCC
Terminal Form	Surface Mount
Package Height	4.57(Max) - 0.51(Min)
Package Length	9.04(Max)
Package Width	9.04(Max)
PCB changed	20
