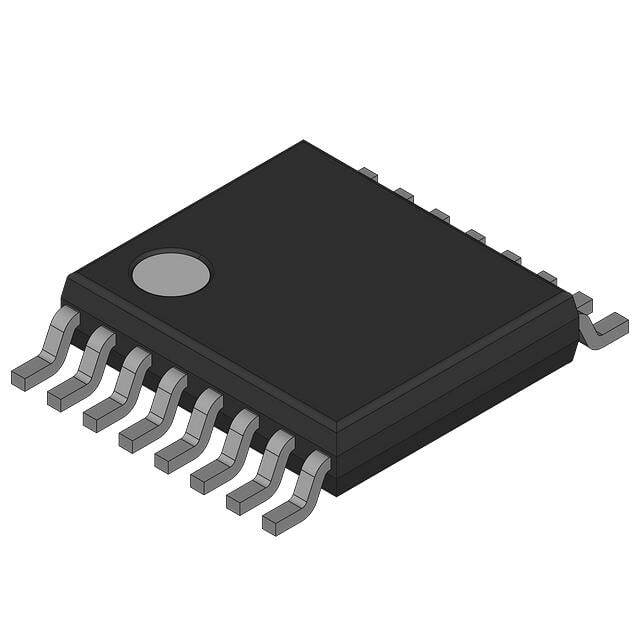

UCC2893PW

SKU: 73632

Manufacturer: Texas Instruments

Current Mode PWM Controller 2A 1000kHz 16-Pin TSSOP Tube

1900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Current Mode PWM Controller
Control Method	Current Mode PWM Controller
Topology	Flyback
Number of PWM Outputs	1
Switching Frequency (kHz)	1000
Maximum Duty Cycle (%)	73
Rise Time (ns)	19
Output Current (mA)	2000
Fall Time (ns)	14
Operating Supply Voltage (V)	12
Operating Supply Voltage-Min (V)	8.5
Typical Operating Supply Voltage (V)	12
Operating Supply Voltage-Max (V)	14.5
Maximum Supply Current (mA)	3
Adjustable Output	No
On/Off Pin	No
Synchronous Pin	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tube
Pin Count	16
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	16
