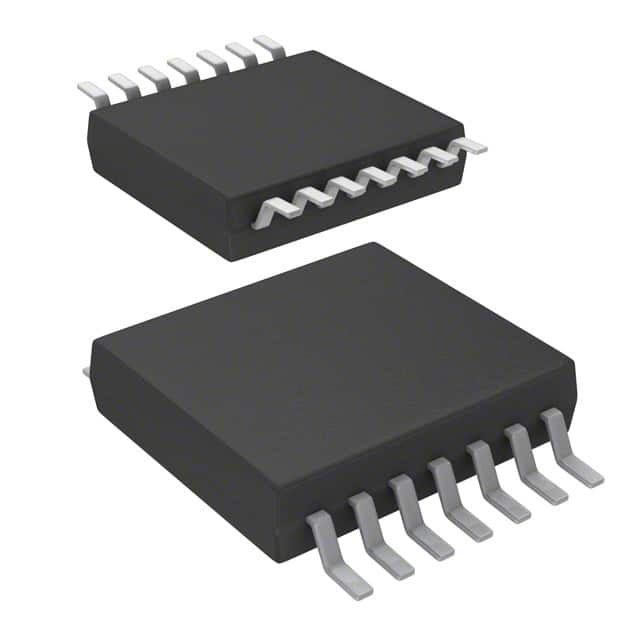

UCC28230PWR

SKU: 128513

Manufacturer: Texas Instruments

Resonant Controllers 9.6V 550kHz 14-Pin TSSOP T/R

580 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Resonant Controllers
Number of PWM Outputs	4
Switching Frequency (kHz)	550
Maximum Duty Cycle (%)	100
Output Voltage (V)	9.6
Operating Supply Voltage (V)	7 to 17
Operating Supply Voltage-Min (V)	7
Typical Operating Supply Voltage (V)	12
Operating Supply Voltage-Max (V)	17
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	14
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	14
