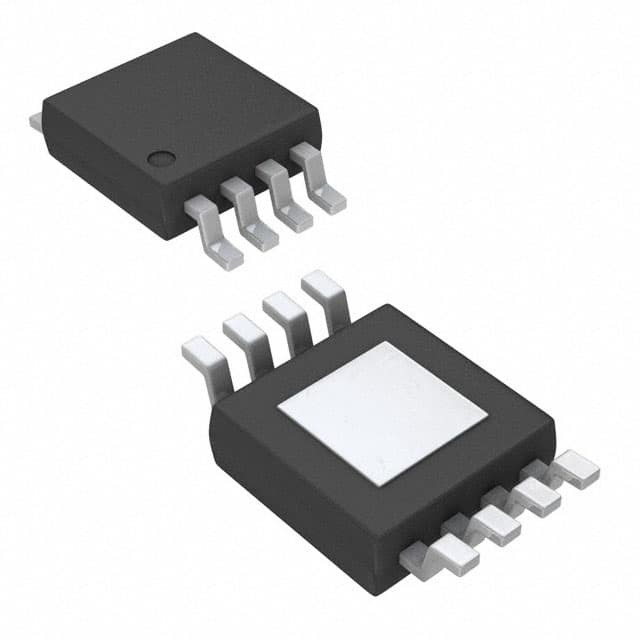

UCC27324DGNR

SKU: 78953

Manufacturer: Texas Instruments

Driver 4.5A 2-OUT Low Side Non-Inv 8-Pin HVSSOP EP T/R

10290 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	Low Side
Driver Configuration	Non-Inverting
Number of Drivers	2
Type	IGBT
Process Technology	BiCMOS
Number of Outputs	2
Maximum Rise Time (ns)	40
Maximum Fall Time (ns)	40
Maximum Propagation Delay Time (ns)	35
Input Logic Compatibility	TTL
Operating Supply Voltage-Min (V)	4.5
Operating Supply Voltage-Max (V)	15
Maximum Supply Current (mA)	0.75
Typical Input Low Threshold Voltage (V)	1(Max)
Typical Input High Threshold Voltage (V)	2(Min)
Peak Output Current (A)	4.5
Output Resistance (Ohm)	30
Maximum Power Dissipation (mW)	2120
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	HVSSOP EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
