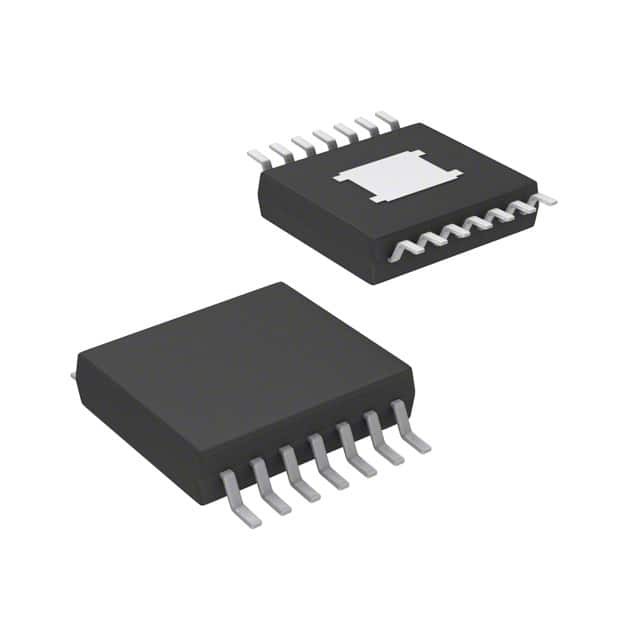

UCC27222PWPR

SKU: 36621

Manufacturer: Texas Instruments

Driver 3.3A 2-OUT High and Low Side Inv/Non-Inv 14-Pin HTSSOP EP T/R

690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	High and Low Side
Driver Configuration	Inverting
Bridge Type	Half Bridge
Number of Drivers	2
High and Low Sides Dependency	Synchronous
Type	MOSFET
Number of Outputs	2
Maximum Rise Time (ns)	25
Maximum Fall Time (ns)	35
Input Logic Compatibility	TTL
Operating Supply Voltage-Min (V)	8.5
Operating Supply Voltage-Max (V)	20
Maximum Supply Current (mA)	100
Typical Input Low Threshold Voltage (V)	2.5
Typical Input High Threshold Voltage (V)	3.6
Peak Output Current (A)	3.3(Typ)
Output Resistance (Ohm)	25
Maximum Power Dissipation (mW)	3000
Operating Temperature-Min	-40
Operating Temperature-Max	105
Special Features	Synchronous
Packing Method	Tape and Reel
Pin Count	14
Standard Package Method	SOP
Original Package	HTSSOP EP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	14
