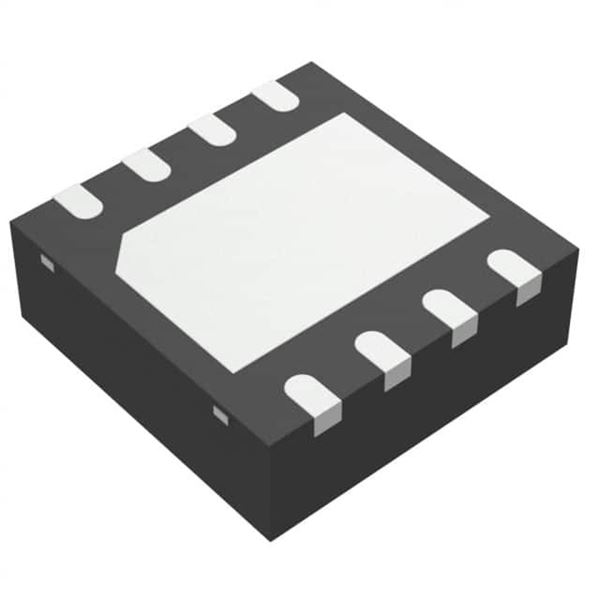

UCC27201DRMR

SKU: 142783

Manufacturer: Texas Instruments

Driver 3A 2-OUT High and Low Side Full Brdg/Half Brdg 8-Pin VSON EP T/R

13030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	High and Low Side
Bridge Type	Full Bridge
Number of Drivers	2
High and Low Sides Dependency	Independent
Type	MOSFET
Number of Outputs	2
Maximum Rise Time (ns)	8(Typ)
Maximum Fall Time (ns)	7(Typ)
Maximum Operating Frequency (kHz)	1000(Min)
Maximum Propagation Delay Time (ns)	50
Input Logic Compatibility	TTL
Operating Supply Voltage-Min (V)	8
Typical Operating Supply Voltage (V)	12
Operating Supply Voltage-Max (V)	17
Maximum Supply Current (mA)	5.5
Typical Input Low Threshold Voltage (V)	1.6
Typical Input High Threshold Voltage (V)	1.7
Peak Output Current (A)	3(Typ)
Maximum Power Dissipation (mW)	3300
Operating Temperature-Min	-40
Operating Temperature-Max	140
Special Features	Under Voltage Lockout
Maximum Turn-On Delay Time (ns)	1(Typ)
Maximum Turn-Off Delay Time (ns)	1(Typ)
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SON
Original Package	VSON EP
Terminal Form	Surface Mount
Package Height	0.9
Package Length	4
Package Width	4
PCB changed	8
