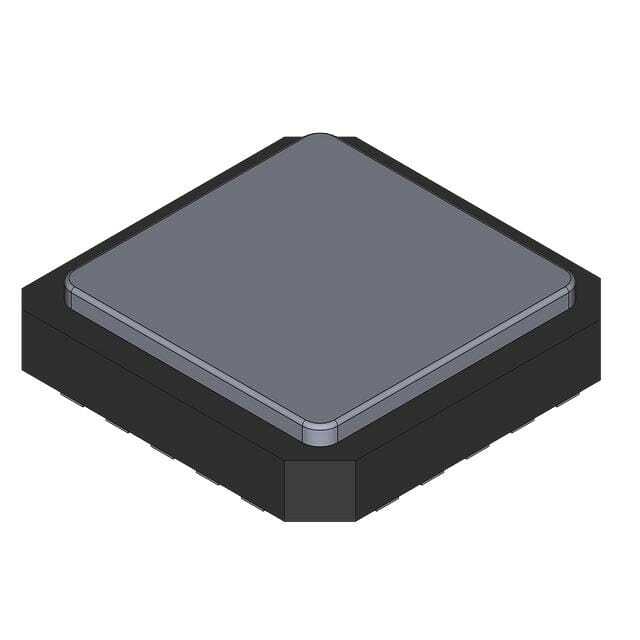

UCC1806L

SKU: 151566

Manufacturer: Texas Instruments

Current Mode PWM Controller 500mA 52kHz 20-Pin CLLCC Tube

570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Current Mode PWM Controller
Control Method	Current Mode PWM Controller
Topology	Flyback
Number of PWM Outputs	2
Oscillator Accuracy (kHz)	47
Switching Frequency (kHz)	52
Maximum Duty Cycle (%)	50
Rise Time (ns)	35
Output Current (mA)	500(Max)
Fall Time (ns)	35
Process Technology	BiCMOS
Operating Supply Voltage-Min (V)	8
Operating Supply Voltage-Max (V)	14.5
Maximum Supply Current (mA)	1.4
Adjustable Output	No
On/Off Pin	Yes
Synchronous Pin	Yes
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tube
Original Package	CLLCC
Pin Count	20
Standard Package Method	LLCC
Terminal Form	Surface Mount
Package Height	2.03(Max)
Package Length	9.09(Max)
Package Width	9.09(Max)
PCB changed	20
