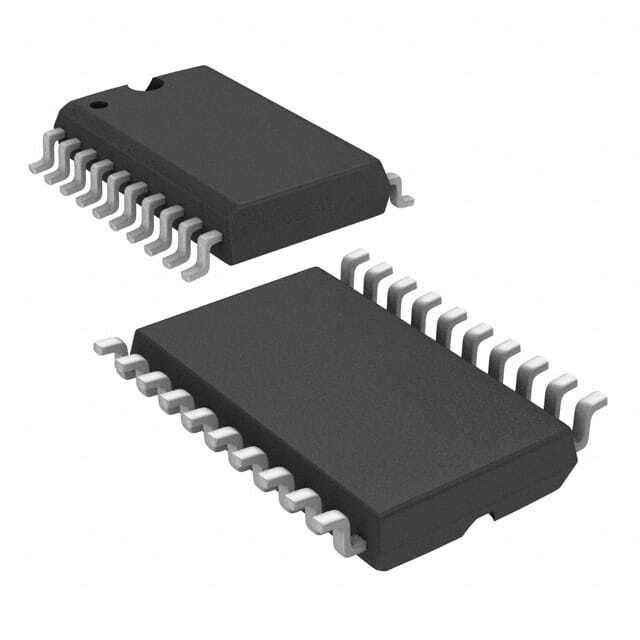

UC3879DW

SKU: 107218

Manufacturer: Texas Instruments

Resonant Controllers 100mA 300kHz 20-Pin SOIC Tube

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Resonant Controllers
Control Method	Voltage
Topology	Full-Bridge
Number of PWM Outputs	4
Oscillator Accuracy (kHz)	200
Switching Frequency (kHz)	300
Maximum Duty Cycle (%)	100
Output Current (mA)	100(Max)
Operating Supply Voltage (V)	10.75 to 20
Operating Supply Voltage-Min (V)	10.75
Operating Supply Voltage-Max (V)	20
Maximum Supply Current (mA)	35
Adjustable Output	No
On/Off Pin	No
Synchronous Pin	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Pin Count	20
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	13(Max)
Package Width	7.6(Max)
PCB changed	20
