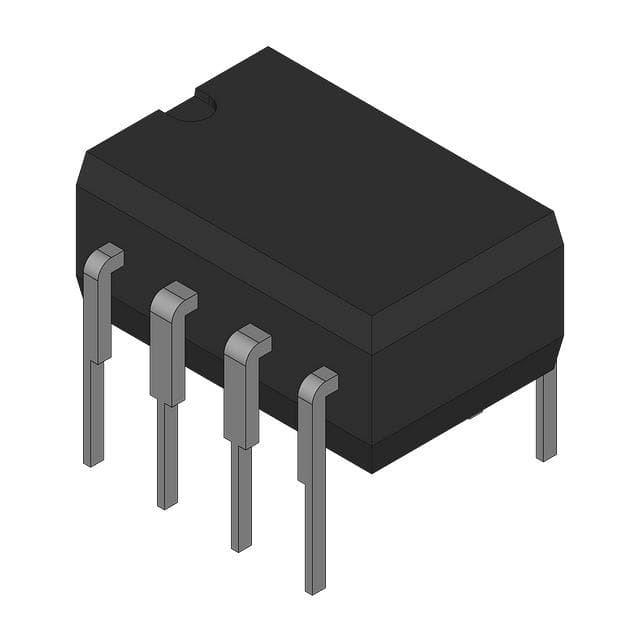

UC3853N

SKU: 36610

Manufacturer: Texas Instruments

PREREGUL 0.25mA 82.5kHz 8-Pin PDIP Tube

20 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Power Factor Correction Preregulator
Operation Mode	CRM, Current Mode
Operating Supply Voltage-Max (V)	40
Start-Up Supply Current (mA)	0.25
UVLO Turn-On Threshold (V)	11.5
Switching Frequency (kHz)	82.5
Maximum Duty Cycle (%)	93(Typ)
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tube
Original Package	PDIP
Pin Count	8
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	5.08(Max) - 0.51(Min)
Package Length	10.16(Max)
Package Width	6.6(Max)
PCB changed	8
