UC3823Q

SKU: 156920

Manufacturer: Texas Instruments

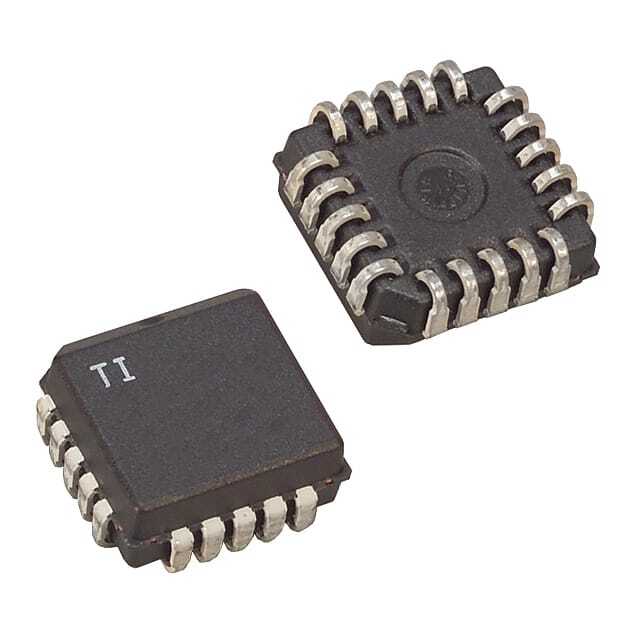

Current Mode PWM Controller 1.5A 1000kHz 20-Pin PLCC Tube

650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
SVHC	Yes
Automotive	No
PPAP	No
Type	Current Mode PWM Controller
Control Method	Current/Voltage
Topology	Boost
Number of PWM Outputs	1
Oscillator Accuracy (kHz)	400
Switching Frequency (kHz)	1000
Maximum Duty Cycle (%)	85
Output Current (mA)	1500(Max)
Rise Time (ns)	30
Fall Time (ns)	30
Operating Supply Voltage (V)	30(Max)
Operating Supply Voltage-Max (V)	30
Maximum Supply Current (mA)	33
Maximum Power Dissipation (mW)	1000
Adjustable Output	No
On/Off Pin	No
Synchronous Pin	No
UVLO Turn-On Threshold (V)	9.2
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Pin Count	20
Standard Package Method	LCC
Original Package	PLCC
Terminal Form	Surface Mount
Package Height	4.57(Max) - 0.51(Min)
Package Length	9.04(Max)
Package Width	9.04(Max)
PCB changed	20
