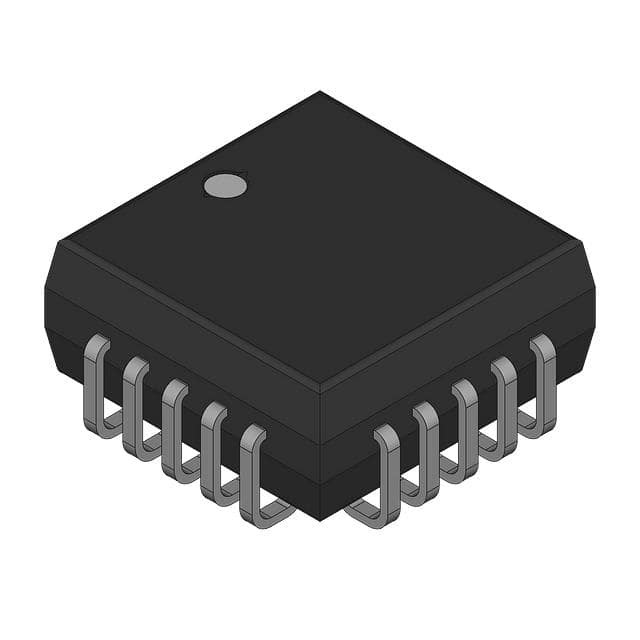

UC3525AQ

SKU: 86060

Manufacturer: Texas Instruments

Voltage Mode PWM Controller 400mA 400kHz 20-Pin PLCC Tube

130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
Automotive	No
PPAP	No
Type	Voltage Mode PWM Controller
Control Method	Voltage
Topology	Push-Pull
Number of PWM Outputs	2
Switching Frequency (kHz)	400
Maximum Duty Cycle (%)	49(Typ)
Output Current (mA)	400(Max)
Rise Time (ns)	100
Fall Time (ns)	50
Operating Supply Voltage (V)	4.5 to 35
Operating Supply Voltage-Min (V)	4.5
Operating Supply Voltage-Max (V)	35
Maximum Power Dissipation (mW)	1000
Adjustable Output	No
On/Off Pin	Yes
Synchronous Pin	Yes
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Original Package	PLCC
Pin Count	20
Standard Package Method	LCC
Terminal Form	Surface Mount
Package Height	4.57(Max) - 0.51(Min)
Package Length	9.04(Max)
Package Width	9.04(Max)
PCB changed	20
