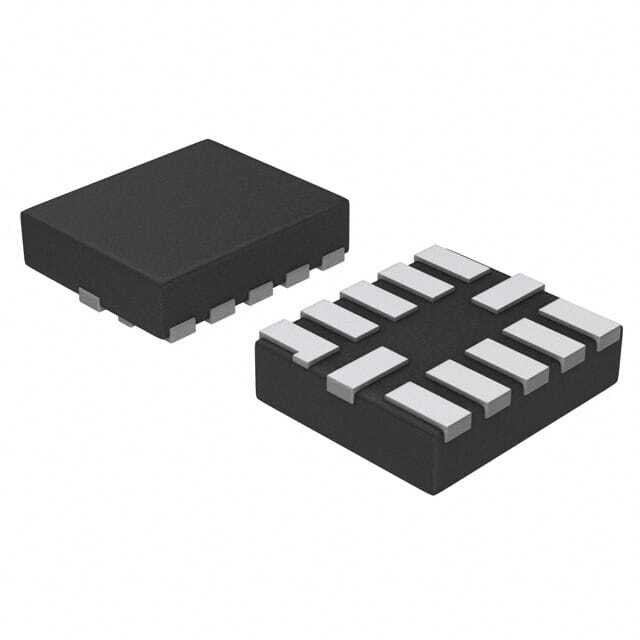

TXB0304RUTR

SKU: 149816

Manufacturer: Texas Instruments

Voltage Level Translator 4-CH Bidirectional 12-Pin UQFN T/R

20630 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	TXB
Logic Function	Voltage Level Translator
Channel Type	Bidirectional
Number of Channels	4
Maximum Propagation Delay Time @ Maximum CL (ns)	8.6(Typ)@1.2V to 3.6V
Absolute Propagation Delay Time (ns)	213
Output Type	3-State
Maximum Low Level Output Current (mA)	0.02
Maximum High Level Output Current (mA)	-0.02
Operating Supply Voltage-Min (V)	0.9
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	3.6
Maximum Quiescent Current (mA)	0.01
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	12
Original Package	UQFN
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.5(Max)
Package Length	2.1(Max)
Package Width	1.8(Max)
PCB changed	12
