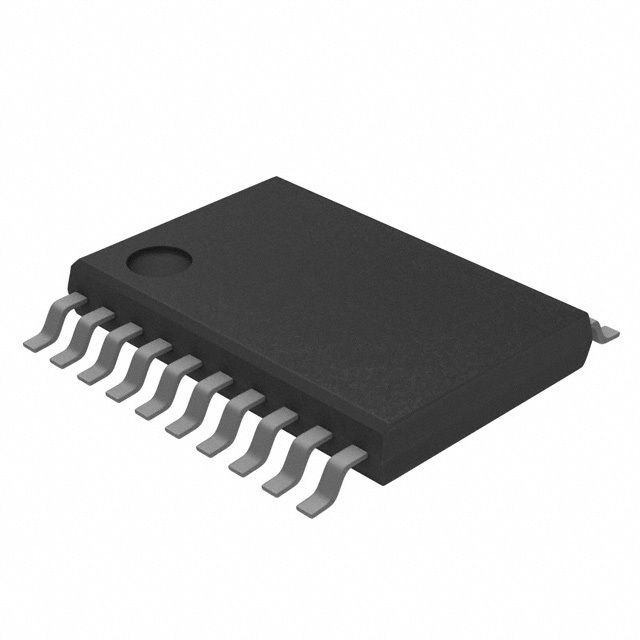

TXB0108PWR

SKU: 142742

Manufacturer: Texas Instruments

Voltage Level Translator 8-CH Bidirectional 20-Pin TSSOP T/R

85770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Logic Family	TXB
Logic Function	Voltage Level Translator
Channel Type	Bidirectional
Number of Channels	8
Maximum Propagation Delay Time @ Maximum CL (ns)	9.5(Typ)@1.2V@1.8V
Absolute Propagation Delay Time (ns)	35.6
Minimum Latch-Up Current (mA)	100
Output Type	3-State
Maximum Low Level Output Current (mA)	0.02
Maximum High Level Output Current (mA)	-0.02
Operating Supply Voltage-Min (V)	1.2/1.65
Typical Operating Supply Voltage (V)	1.8/5
Operating Supply Voltage-Max (V)	3.6/5.5
Maximum Quiescent Current (mA)	0.0035(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	20
Original Package	TSSOP
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	6.6(Max)
Package Width	4.5(Max)
PCB changed	20
