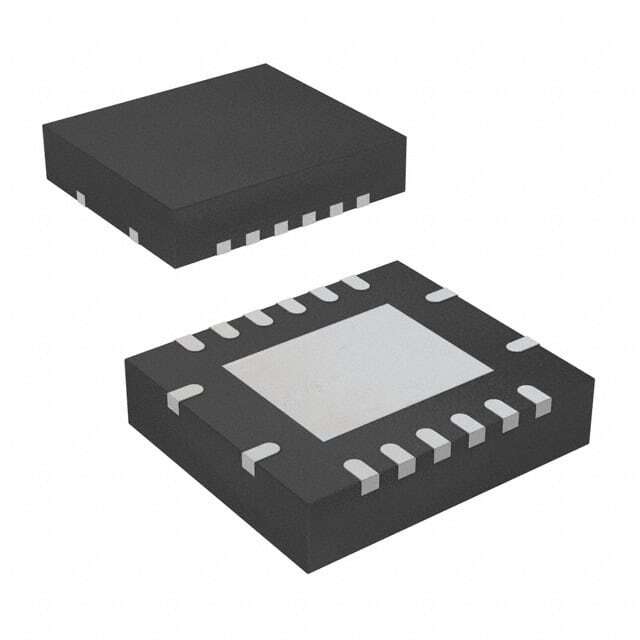

TS5V330RGYR

SKU: 114271

Manufacturer: Texas Instruments

Analog Switch/Analog Multiplexer Quad 1:2 16-Pin VQFN EP T/R

1840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Switch
Switch Architecture	SPDT
Number of Channels per Chip	4
Number of Inputs per Chip	4
Number of Outputs per Chip	8
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Turn-On Time (ns)	6@5V@-40C to 85C
Maximum Turn-Off Time (ns)	6@5V@-40C to 85C
Maximum Frequency (25°C) @ Vcc (MHz)	300(Min)@5V@-40C to 85C
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	4
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Maximum Supply Current (mA)	0.003@5V@-40C to 85C
Maximum Low Level Output Current (mA)	128
Maximum High Level Output Current (mA)	128
Maximum On Resistance (Ohm)	10@4.5V
Maximum On Resistance Range (Ohm)	10 to 25
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	16
Standard Package Method	QFN
Original Package	VQFN EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	4.15(Max)
Package Width	3.65(Max)
PCB changed	16
