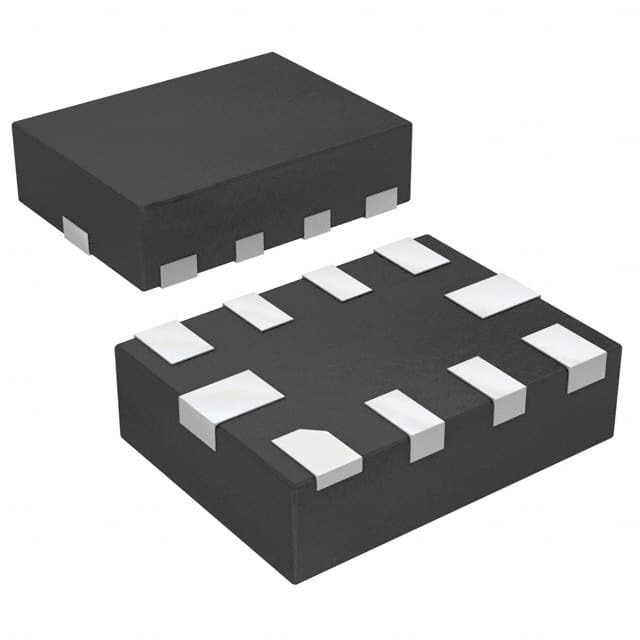

TS5A23159RSER

SKU: 78889

Manufacturer: Texas Instruments

Analog Switch/Analog Multiplexer Dual 1:2 10-Pin UQFN T/R

88420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Switch
Switch Architecture	SPDT
Number of Channels per Chip	2
Number of Inputs per Chip	2
Number of Outputs per Chip	4
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Turn-On Time (ns)	48.5@1.8V
Maximum Turn-Off Time (ns)	11@1.8V
Maximum Frequency (25°C) @ Vcc (MHz)	100(Typ)@5V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	1.65
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Typical Supply Current (mA)	0.00001@5.5V
Maximum Supply Current (mA)	0.00005@5.5V
Maximum Low Level Output Current (mA)	200
Maximum High Level Output Current (mA)	200
Maximum On Resistance (Ohm)	2.5@1.65V
Maximum On Resistance Range (Ohm)	1 to 5
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	10
Standard Package Method	QFN
Original Package	UQFN
Terminal Form	Surface Mount
Package Height	0.55(Max)
Package Length	2.05(Max)
Package Width	1.55(Max)
PCB changed	10
